LNGF 361220-PM-S02:T7325
LNGF 361220-PM-S02:T7325

LNGF 361220-PM-S02:T7325

UGC DOR7347217
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.43 CAD - $76.43 CAD
$76.43 CAD
$76.43 CAD - $76.43 CAD
$76.43 CAD

Vendu en lots de : 5

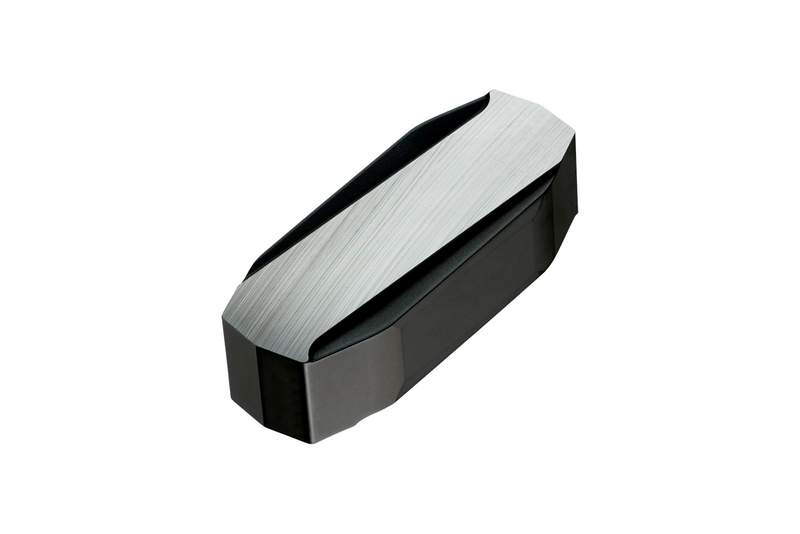

Plaquette de délignage négative double face, rectangulaire, de 36,5 mm de long, 12 mm d'épaisseur pour 2 mm de profondeur de coupe, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux PM avec préparation d'arête S02, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu de MT-CVD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGF 361220-PM-S02:T7325
GradeT7325
Chipbreaker (CBMD)MP-S02
Product Number7347217
Product FamilyLNGF 36
Insert Geometry
Insert DesignLNGF 36
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7347217
EAN3603603295094
File Type Download

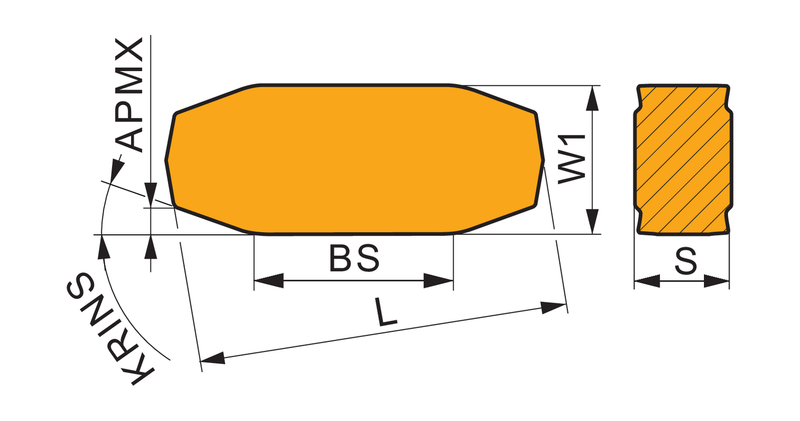

LNGF 361220-PM-S02:T7325 — Line Drawing PDF Download
