E9143/8
E9143/8
E9143/8

E9143/8

UGC DOR7350225
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.83 CAD - $29.83 CAD
$29.83 CAD
$29.83 CAD - $29.83 CAD
$29.83 CAD

Vendu en lots de : 1

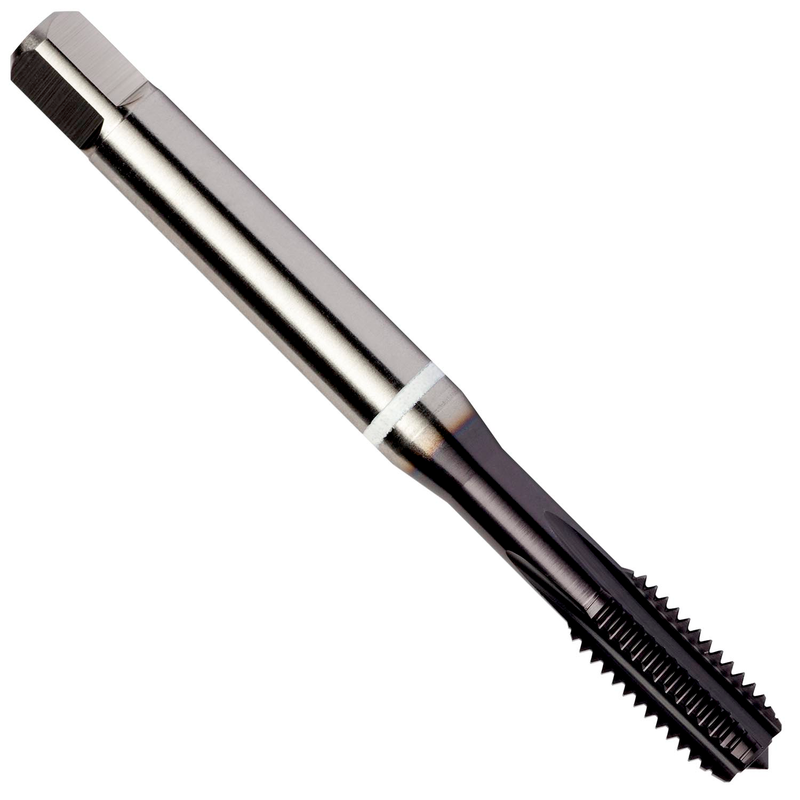

Taraud droit requin blanc, chanfrein forme C, entrée 2-3xP, pour filetage UNF 3/8" au pas de 24 filets par pouce et tolérance H5 sur diamètre de pas, dimensions conformes DIN/ANSI, queue 0,3810" et carré d'entraînement 0,2840", en HSS-E (acier rapide fritté) avec revêtement TiAlN-Top, pour taraudage de trous débouchants ou borgnes jusqu'à 2xD dans la fonte grise, malléable, ductile, à graphite compacté et les polymères

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E9143/8
GradeTiAlN/Top
Product Number7350225
Product FamilyE914

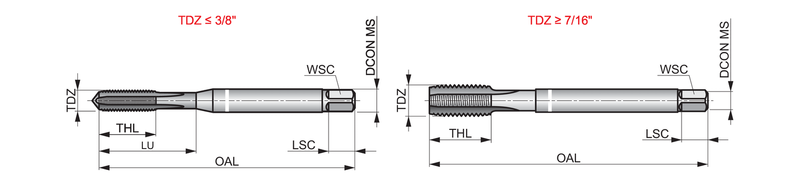

Dimensions
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)89.99 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.476"
Usable Length — mm (LU)37.49 mm
Connection Dia. — in (DCON)0.381"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/8
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)24.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7350225
EAN7320760750698
File Type Download
E9143/8 — Line Drawing PDF Download
