E8155/16
E8155/16
E8155/16

E8155/16

UGC DOR7350232
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.83 CAD - $68.83 CAD
$68.83 CAD
$68.83 CAD - $68.83 CAD
$68.83 CAD

Vendu en lots de : 1

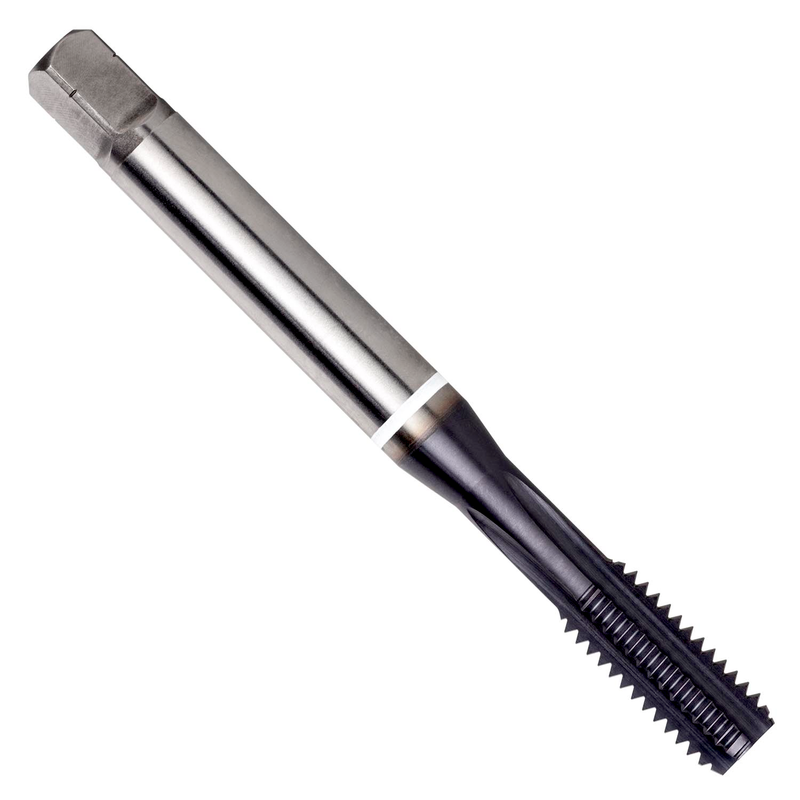

Taraud droit White Shark forme E, entrée 1,5-2xP, pour filet UNC 5/16" à 18 filets au pouce, classe de tolérance 2B, limite H5 sur diamètre sur flanc, dimensions selon DIN/ANSI, queue de 0,3180" et carré d'entraînement de 0,2360", HSS-E métallurgie des poudres avec revêtement TiAlN-Top pour le taraudage de trous borgnes jusqu'à 2,5xD dans la fonte grise, malléable, ductile, à graphite compacté et les polymères

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8155/16
GradeTiAlN/Sommet
Product Number7350232
Product FamilyE815
Dimensions
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)89.99 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.339"
Usable Length — mm (LU)34.01 mm
Connection Dia. — in (DCON)0.318"
Connection Dia. — mm (DCON)8.08 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16 mai
Thread Form (THFT)UNH - Unifié grossier
Threads per Inch (TPI)18.0
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
Through Coolant Yes
StandardDIN/ANSI
Reference Numbers
EDP Number7350232
EAN7320760750766
File Type Download

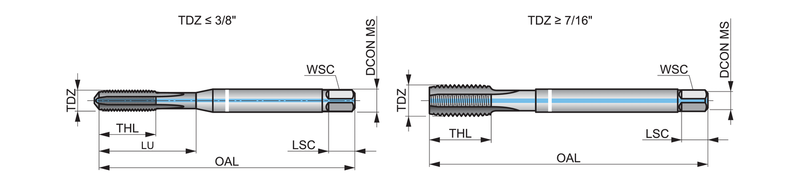

E8155/16 — Line Drawing PDF Download
