E8133/8H5
E8133/8H5
E8133/8H5

E8133/8H5

UGC DOR7350286
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.80 CAD - $38.80 CAD
$38.80 CAD
$38.80 CAD - $38.80 CAD
$38.80 CAD

Vendu en lots de : 1

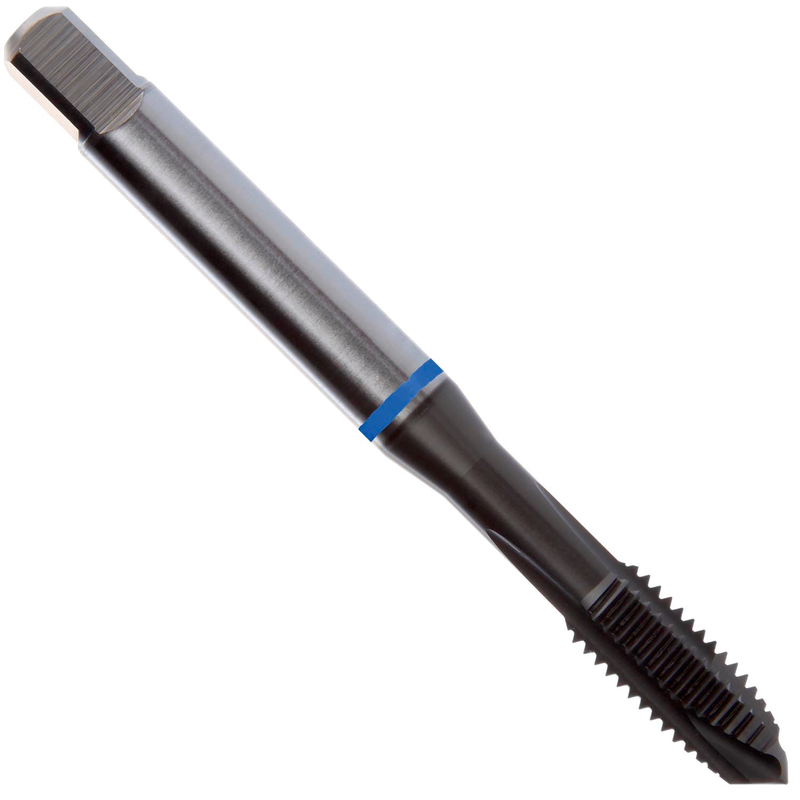

Taraud machine Blue Shark à pointe spirale avec entrée B 3.5-5xP, pour filetage Unified National Coarse UNC 3/8" avec 16 filets par pouce et classe de tolérance 2B avec limites de diamètre sur flancs H5, dimensions selon la norme DIN/ANSI avec queue 0.3810" et carré d'entraînement 0.2840", en HSS-E métallurgie des poudres avec revêtement Super-B pour le taraudage de trous débouchants 2.5xD dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8133/8H5
GradeSUPER-B
Product Number7350286
Product FamilyE813
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.535"
Usable Length — mm (LU)38.99 mm
Connection Dia. — in (DCON)0.381"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3/8
Thread Form (THFT)CNU - Calibrage Non Uniforme
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7350286
EAN7320760751305
File Type Download
E8133/8H5 — Line Drawing PDF Download
