E8131/2H5
E8131/2H5
E8131/2H5

E8131/2H5

UGC DOR7350289
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.97 CAD - $59.97 CAD
$59.97 CAD
$59.97 CAD - $59.97 CAD
$59.97 CAD

Vendu en lots de : 1

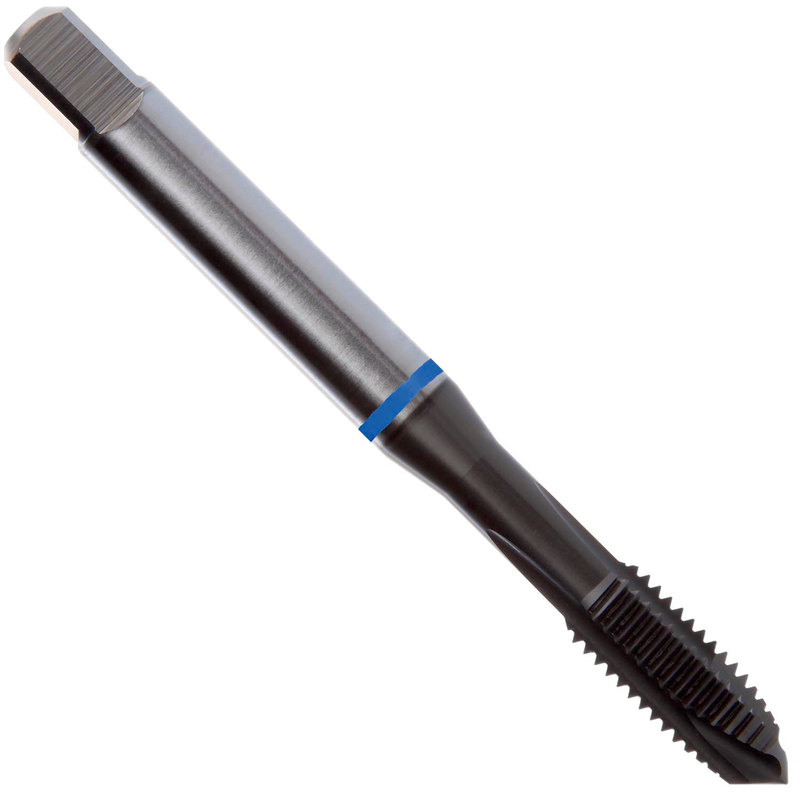

Taraud machine Blue Shark à coupe frontale, avec entrée B de 3.5-5xP, pour le taraudage de filets UNC 1/2" à 13 filets par pouce de classe de tolérance 2B avec tolérance sur diamètre moyen H5, dimensions selon la norme DIN/ANSI avec queue de 0.3670" et carré d'entraînement de 0.2730", en HSS-E fritté avec revêtement Super-B pour le taraudage de trous débouchants de 2.5xD dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8131/2H5
GradeSUPER-B
Product Number7350289
Product FamilyE813
Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.01 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.367"
Connection Dia. — mm (DCON)9.32 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1/2
Thread Form (THFT)UCC - Unifié Grossier
Threads per Inch (TPI)13.0
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7350289
EAN7320760751336
File Type Download
E8131/2H5 — Line Drawing PDF Download
