E8133/4H5
E8133/4H5
E8133/4H5

E8133/4H5

UGC DOR7350293
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.74 CAD - $151.74 CAD
$151.74 CAD
$151.74 CAD - $151.74 CAD
$151.74 CAD

Vendu en lots de : 1

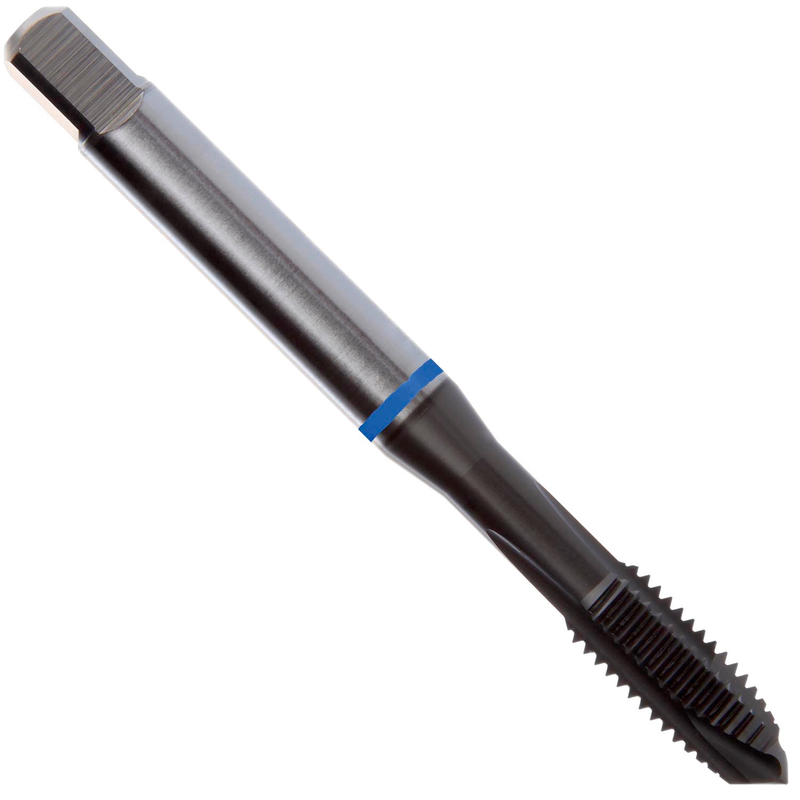

Taraud machine Blue Shark à pointe spirale et chanfrein forme B avec entrée seconde de 3,5-5 filets, pour filet UNC 3/4" avec 10 filets par pouce et classe de tolérance 2B avec tolérance de diamètre sur flanc H5, dimensions selon norme DIN/ANSI avec queue de 0,5900" et carré d'entraînement de 0,4390", en HSS-E fritté avec revêtement Super-B pour le taraudage de trous débouchants jusqu'à 2,5xD dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8133/4H5
GradeSUPER-B
Product Number7350293
Product FamilyE813
Dimensions
Overall Length — in (OAL)4.921"
Overall Length — mm (OAL)124.99 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.59"
Connection Dia. — mm (DCON)14.99 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)3/4
Thread Form (THFT)UNC - Unifié grossier
Threads per Inch (TPI)10.0
Tool Information
ShankQueue cylindrique à carré
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7350293
EAN7320760751374
File Type Download
E8133/4H5 — Line Drawing PDF Download
