E8131H4
E8131H4
E8131H4

E8131H4

UGC DOR7350298
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$198.67 CAD - $198.67 CAD
$198.67 CAD
$198.67 CAD - $198.67 CAD
$198.67 CAD

Vendu en lots de : 1

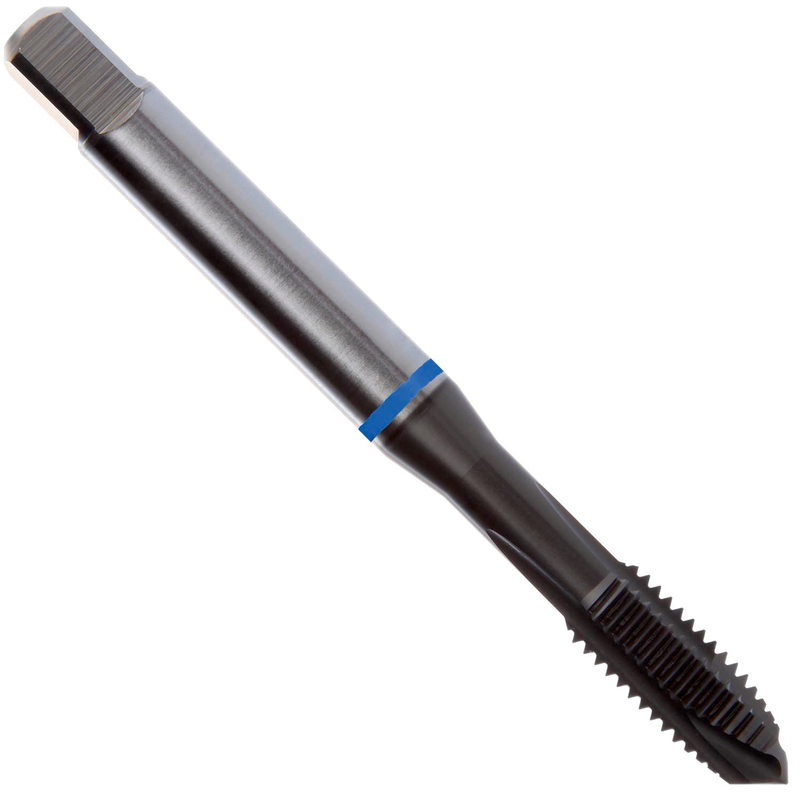

Taraud machine Blue Shark à pointe spirale avec entrée B à 3.5-5 filets, pour filetage UNC 1" à 8 filets par pouce et classe de tolérance 3B avec tolérances sur diamètre de flanc H4, dimensions selon la norme DIN/ANSI avec queue de 0,8000" et carré d'entraînement de 0,5970", en HSS-E fritté avec revêtement Super-B pour le taraudage de trous débouchants jusqu'à 2.5xD dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8131H4
GradeSUPER-B
Product Number7350298
Product FamilyE813
Dimensions
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)159.99 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.8"
Connection Dia. — mm (DCON)20.32 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1"
Thread Form (THFT)UNC - Unifié grossier
Threads per Inch (TPI)8.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7350298
EAN7320760751428
File Type Download
E8131H4 — Line Drawing PDF Download
