E9131/4H3
E9131/4H3
E9131/4H3

E9131/4H3

UGC DOR7350301
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.60 CAD - $31.60 CAD
$31.60 CAD
$31.60 CAD - $31.60 CAD
$31.60 CAD

Vendu en lots de : 1

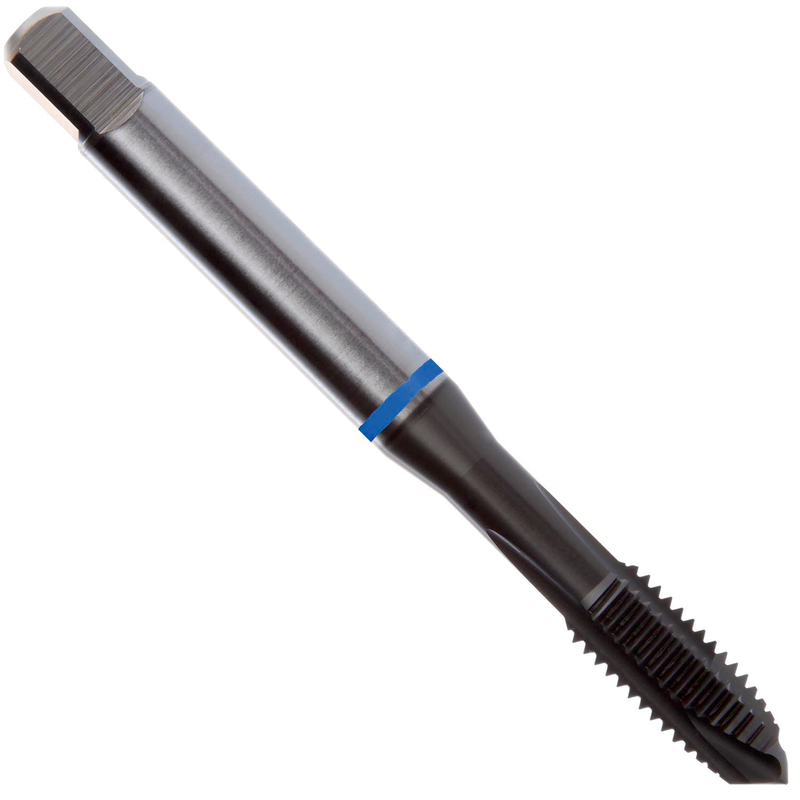

Taraud machine Blue Shark à pointe spirale, avec chanfrein forme B (3,5-5xP), pour filetage Unifié Fin UNF 1/4" avec 28 filets par pouce et tolérance 3B avec limites de diamètre de pas H3, dimensions selon la norme DIN/ANSI avec queue de 0,2550" et carré d'entraînement de 0,1890", en HSS-E (acier rapide fritté) avec revêtement Super-B, pour le taraudage de trous débouchants (2.5xD) dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E9131/4H3
GradeSUPER-B
Product Number7350301
Product FamilyE913
Dimensions
Overall Length — in (OAL)3.15"
Overall Length — mm (OAL)80.01 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.984"
Usable Length — mm (LU)24.99 mm
Connection Dia. — in (DCON)0.255"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/4
Thread Form (THFT)UNF - Unifié fin
Threads per Inch (TPI)28.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7350301
EAN7320760751459
File Type Download
E9131/4H3 — Line Drawing PDF Download
