E769M18X1.5
E769M18X1.5
E769M18X1.5

E769M18X1.5

UGC DOR7350334
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$99.60 CAD - $99.60 CAD
$99.60 CAD
$99.60 CAD - $99.60 CAD
$99.60 CAD

Vendu en lots de : 1

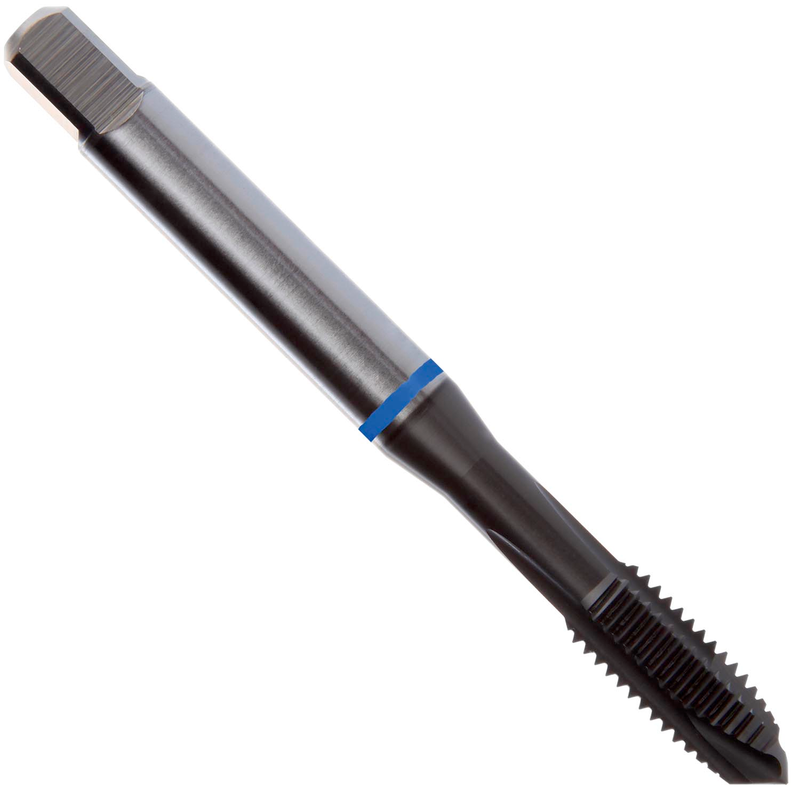

Taraud machine Blue Shark à pointe spirale avec entrée forme B, 3,5-5 filets pour filetage métrique fin ISO M18 au pas de 1,50 mm et tolérance D7, dimensions selon la norme DIN/ANSI avec queue de 0,5420" et carré d'entraînement de 0,4040", en HSS-E fritté avec revêtement Super-B pour la réalisation de filetages débouchants jusqu'à 2.5xD dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI)E769M18X1,5
Product Name (ISO)E769M18X1.5
GradeSUPER-B
Product Number7350334
Product FamilyE769
Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.542"
Connection Dia. — mm (DCON)13.77 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)18
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7350334
EAN7320760751787
File Type Download
E769M18X1.5 — Line Drawing PDF Download
