E9123/4H5
E9123/4H5
E9123/4H5

E9123/4H5

UGC DOR7350368
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$221.09 CAD - $221.09 CAD
$221.09 CAD
$221.09 CAD - $221.09 CAD
$221.09 CAD

Vendu en lots de : 1

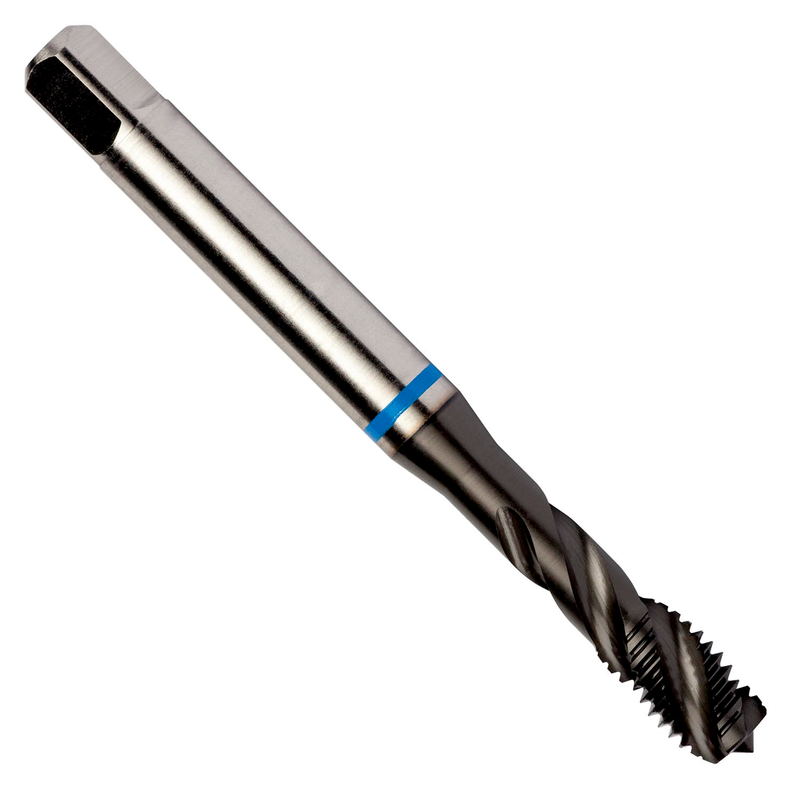

Taraud à spirale Blue Shark, forme C, entrée 2-3xP, pour filetage UNF 3/4" avec 16 filets par pouce et tolérance 2B, limite de diamètre sur flanc H5, dimensions selon la norme DIN/ANSI, queue de 0.5900" et carré d'entraînement de 0.4390", en HSS-E fritté avec revêtement Super-B et angle d'hélice de 40° pour le taraudage de trous borgnes jusqu'à 2.5xD dans l'acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E9123/4H5
GradeSUPER-B
Product Number7350368
Product FamilyE912

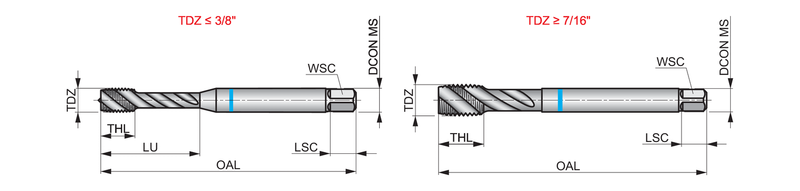

Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.01 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.59"
Connection Dia. — mm (DCON)14.99 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Threading
Thread Diameter Size (TDZ)3/4
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)16.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number7350368
EAN7320760752128
File Type Download
E9123/4H5 — Line Drawing PDF Download
