Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 0,2811" (K), longueur totale 91 mm et longueur utile 53 mm selon la norme DIN 6537 L avec pointe à quatre facettes et à auto-centrage de 140° modifiée, en carbure monobloc avec revêtement TiAlN, âme amincie continue et trous d'arrosage intégrés pour perçage 5xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R453K
GradeTiAlN
Product Number7361211
Product FamilyR453

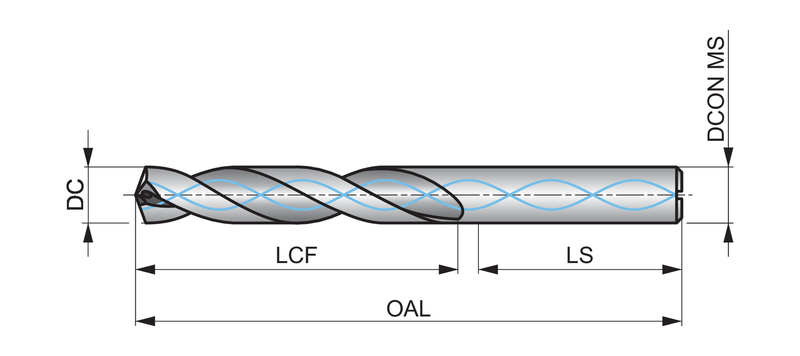

Dimensions
Cutting Diameter — in (DC)0.2811"
Cutting Diameter — mm (DC)7.14 mm
Overall Length — in (OAL)3.5827"
Overall Length — mm (OAL)91.0 mm
Flute Length — in (LCF)2.0866"
Flute Length — mm (LCF)53.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number7361211
EAN7320760756577
File Type Download
R453K — 3D Model STP Download
R453K — Line Drawing PDF Download
