UGC DOR7361241
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$150.86 CAD - $150.86 CAD
$150.86 CAD
$150.86 CAD - $150.86 CAD
$150.86 CAD

Vendu en lots de : 1

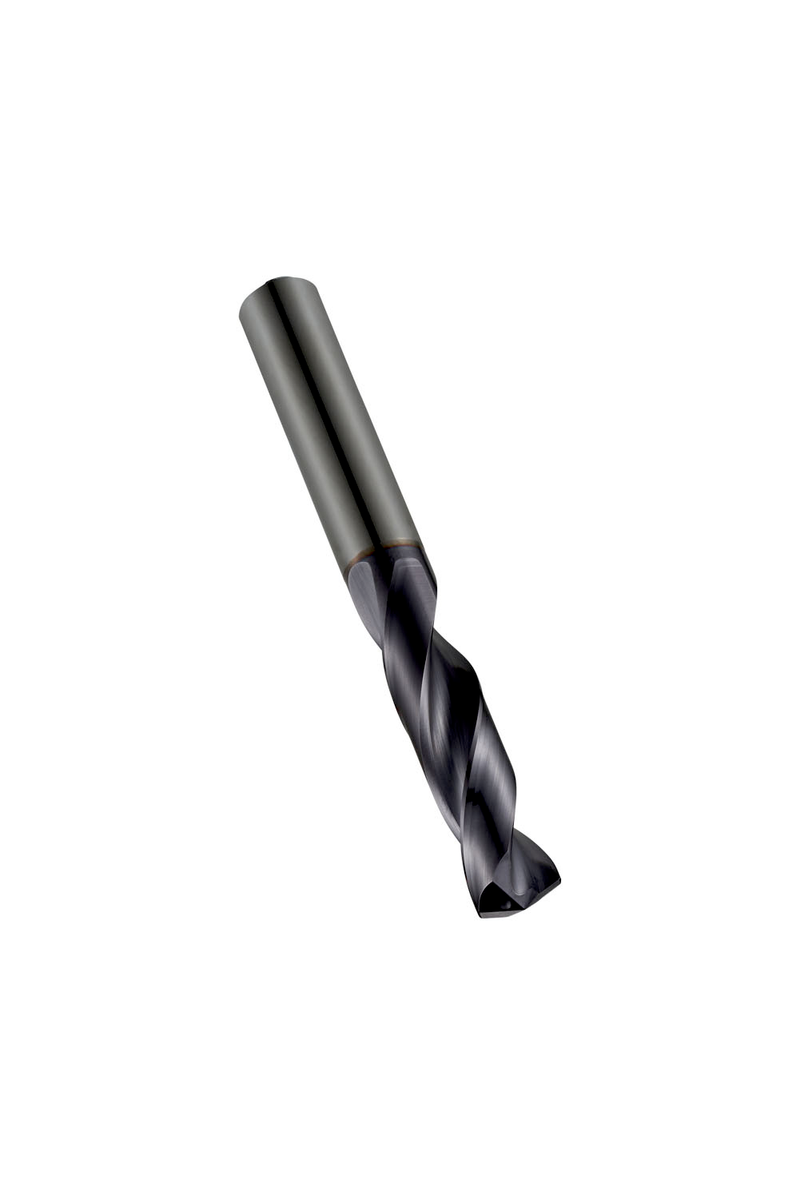

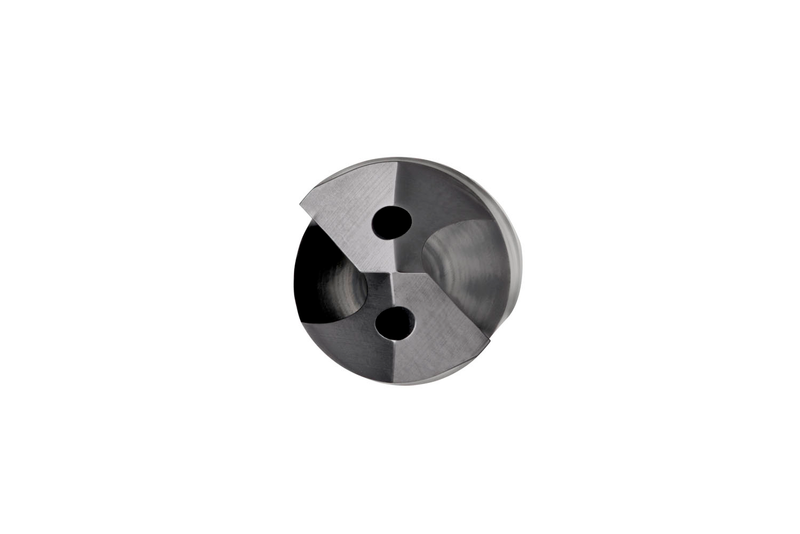

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 0,2421" (C) avec une longueur totale de 79mm et une longueur de coupe de 34mm selon la norme DIN 6537 K avec une pointe de centrage à 4 facettes modifiée à 140°, en carbure monobloc avec revêtement TiAlN, une âme continue et des trous d'arrosage pour le perçage en 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les super-alliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R457C
GradeTiAlN
Product Number7361241
Product FamilyR457

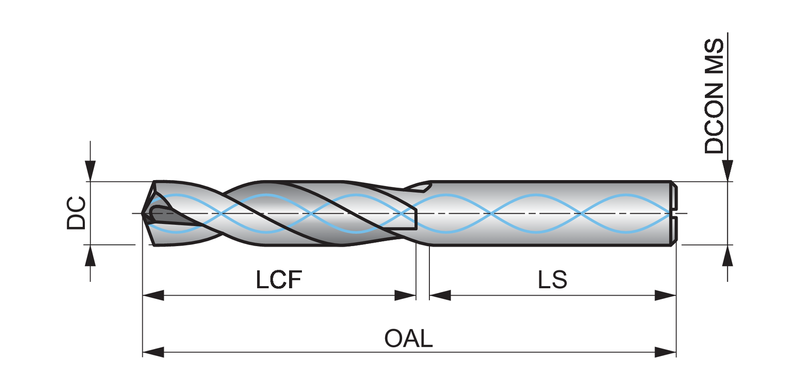

Dimensions
Cutting Diameter — in (DC)0.2421"
Cutting Diameter — mm (DC)6.15 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.3386"
Flute Length — mm (LCF)34.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 K
Reference Numbers
EDP Number7361241
EAN7320760756874
File Type Download
R457C — 3D Model STP Download
R457C — Line Drawing PDF Download
