R4579.2
R4579.2
R4579.2
R4579.2

R4579.2

UGC DOR7361253
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$181.50 CAD - $181.50 CAD
$181.50 CAD
$181.50 CAD - $181.50 CAD
$181.50 CAD

Vendu en lots de : 1

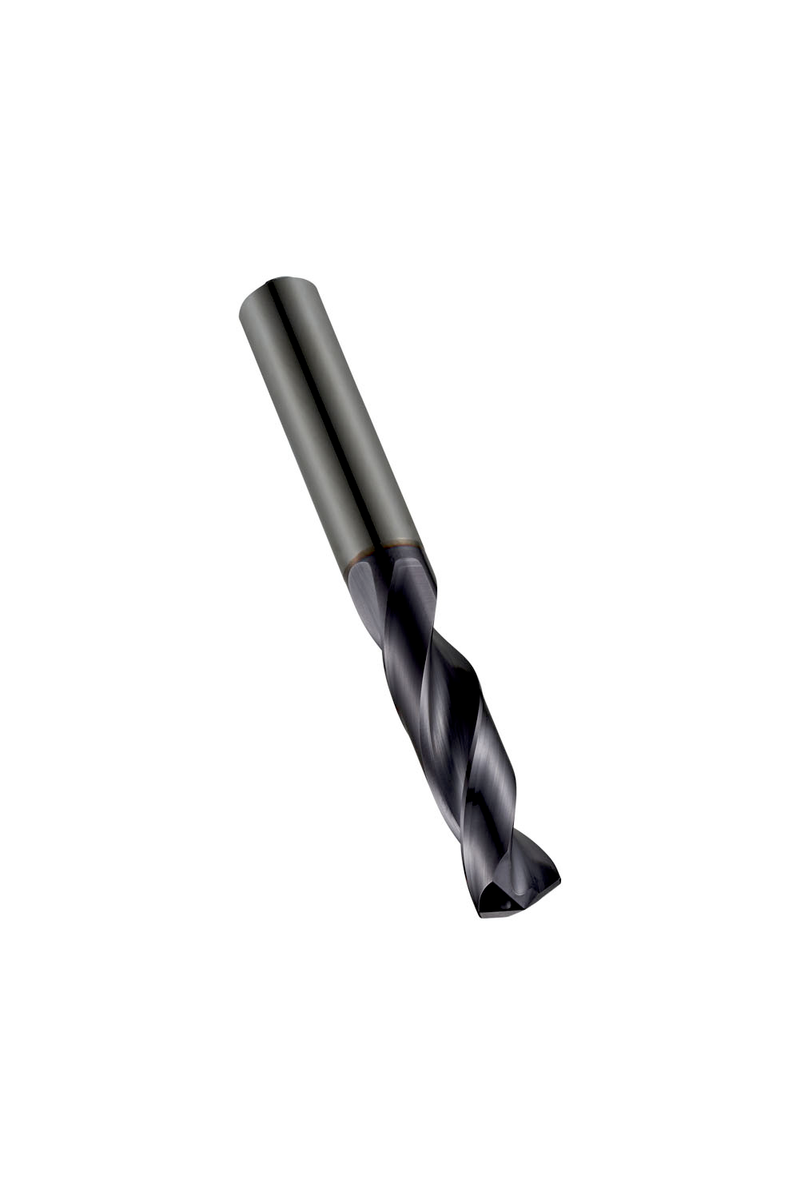

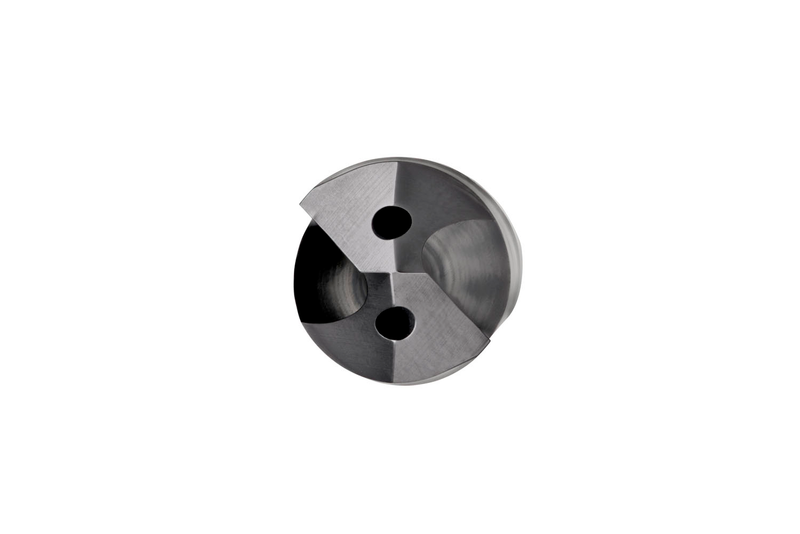

Forets hautes performances FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 9,2 mm, longueur totale de 89 mm et longueur de goujure de 47 mm selon la norme DIN 6537 K avec pointe à 4 facettes modifiée à 140°, carbure monobloc avec revêtement TiAlN, âme amincie en continu et trous de lubrification internes pour un perçage à 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux, les superalliages et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4579.2
GradeTiAlN
Product Number7361253
Product FamilyR457

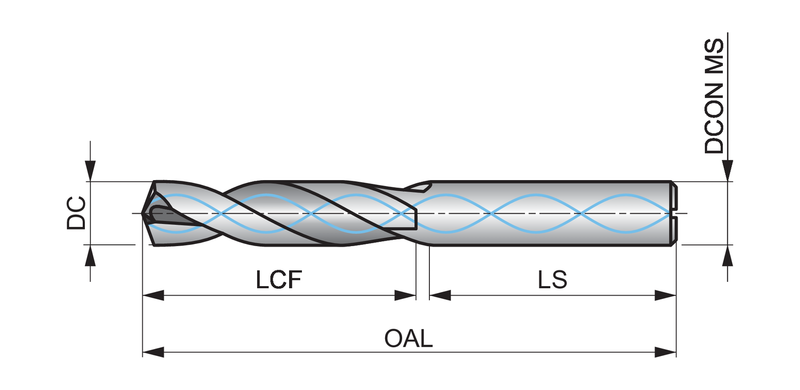

Dimensions
Cutting Diameter — in (DC)0.3622"
Cutting Diameter — mm (DC)9.2 mm
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Flute Length — in (LCF)1.8504"
Flute Length — mm (LCF)47.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 K
Reference Numbers
EDP Number7361253
EAN7320760756997
File Type Download
R4579.2 — 3D Model STP Download
R4579.2 — Line Drawing PDF Download
