UGC DOR7361280
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$177.57 CAD - $177.57 CAD
$177.57 CAD
$177.57 CAD - $177.57 CAD
$177.57 CAD

Vendu en lots de : 1

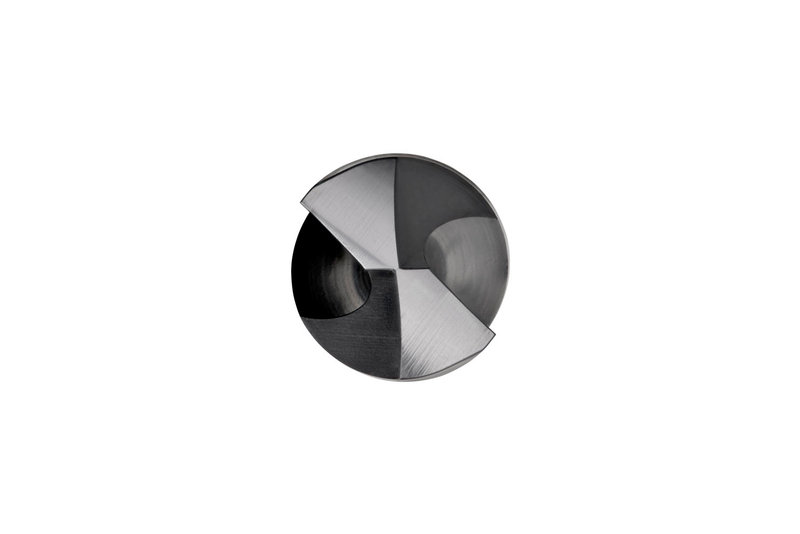

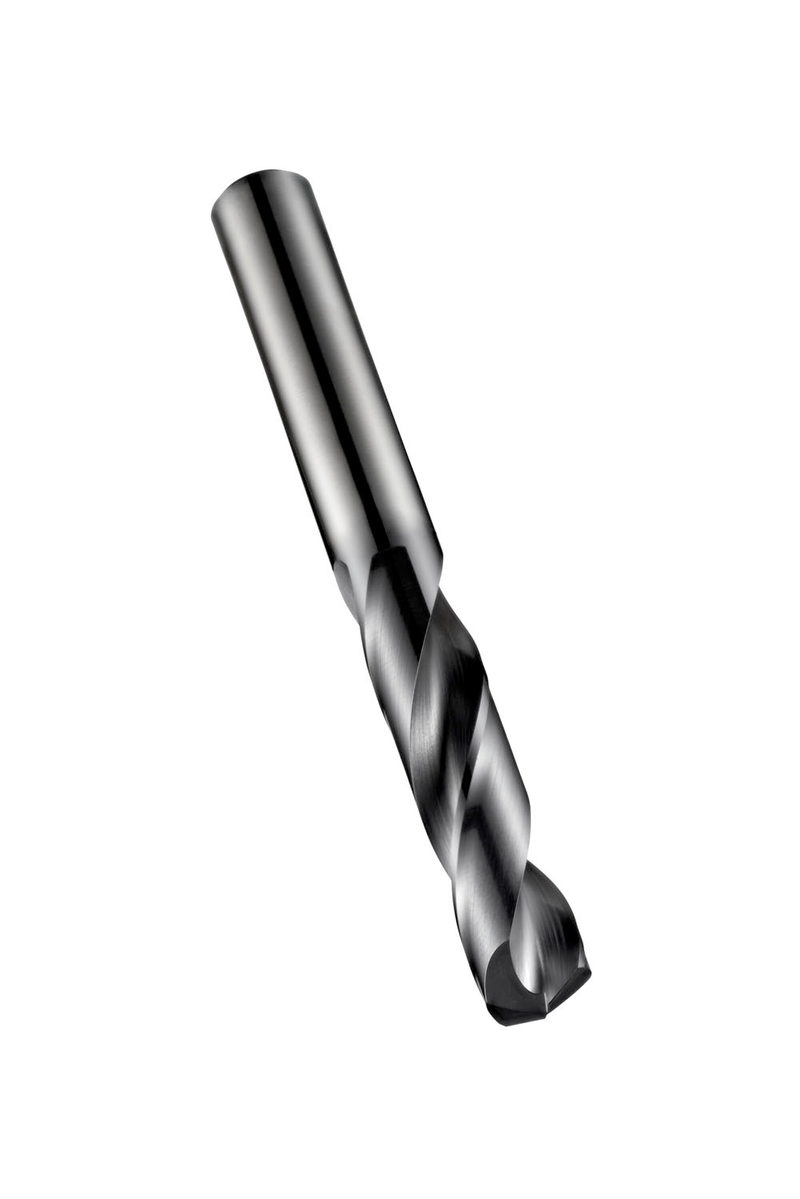

Foret haute performance FORCE X avec queue cylindrique DIN 6535HA NC, diamètre 10,7mm avec une longueur totale de 102mm et une longueur de coupe de 55mm selon la norme DIN 6537 K avec une pointe en croix modifiée à 4 facettes de 140°, en carbure monobloc avec revêtement TiAlN et une âme amincie en continu pour un perçage à 3xD sans débourrage dans l'acier, l'acier inoxydable, la fonte, les matériaux non ferreux et les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R45810.7
GradeTiAlN
Product Number7361280
Product FamilyR458

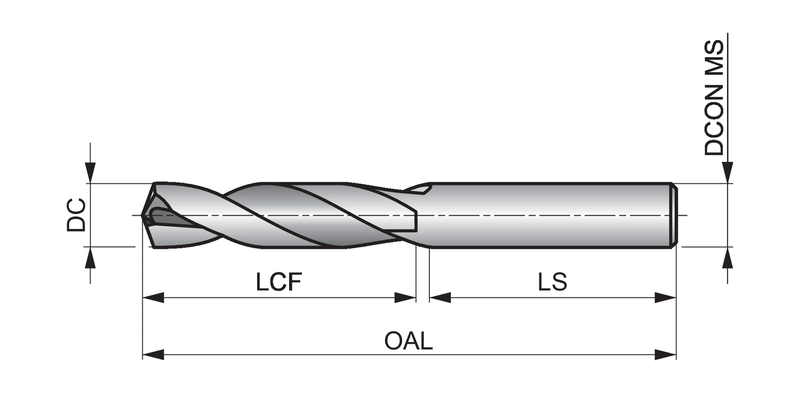

Dimensions
Cutting Diameter — in (DC)0.4213"
Cutting Diameter — mm (DC)10.7 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Flute Length — in (LCF)2.1654"
Flute Length — mm (LCF)55.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant No
StandardDIN 6537 K
Reference Numbers
EDP Number7361280
EAN7320760757260
File Type Download
R45810.7 — 3D Model STP Download
R45810.7 — Line Drawing PDF Download
