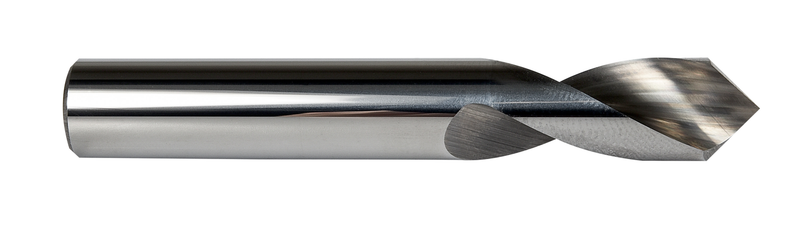

DS1201/8
DS1201/8

DS1201/8

UGC PRE7378063
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.24 CAD - $22.24 CAD
$22.24 CAD
$22.24 CAD - $22.24 CAD
$22.24 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DS1201/8
GradeLumineux
Product Number7378063
Product FamilyDS-120

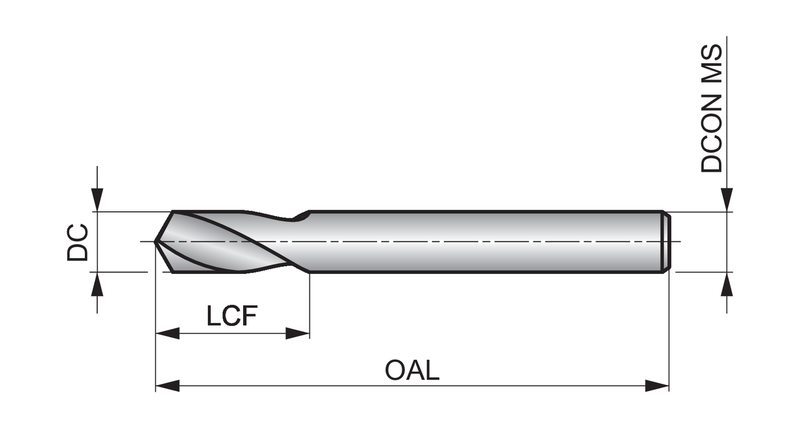

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)38.1 mm
Flute Length — in (LCF)0.5625"
Flute Length — mm (LCF)14.29 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)120°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number7378063
EAN7320760761656
File Type Download
DS1201/8 — 3D Model STP Download
DS1201/8 — Line Drawing PDF Download
