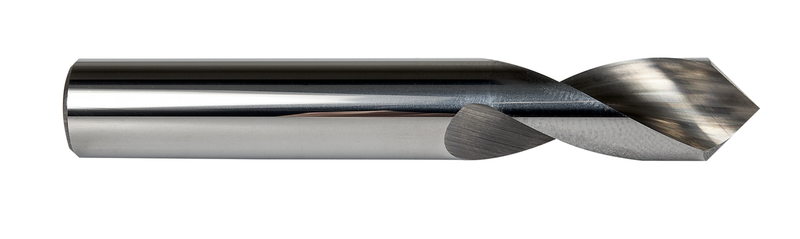

DS1205/16
DS1205/16

DS1205/16

UGC PRE7378066
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.56 CAD - $42.56 CAD
$42.56 CAD
$42.56 CAD - $42.56 CAD
$42.56 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DS1205/16
GradeLumineux
Product Number7378066
Product FamilyDS-120

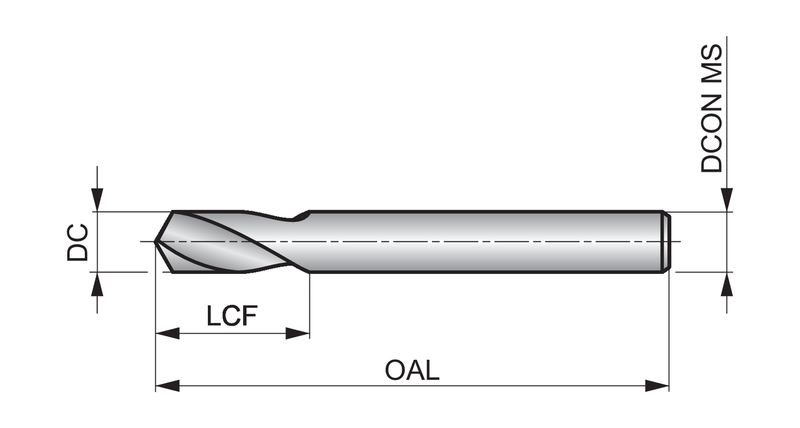

Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Flute Length — in (LCF)1.0"
Flute Length — mm (LCF)25.4 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)120°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number7378066
EAN7320760761687
File Type Download
DS1205/16 — 3D Model STP Download
DS1205/16 — Line Drawing PDF Download
