UGC DOR7441117
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.36 CAD - $57.36 CAD
$57.36 CAD
$57.36 CAD - $57.36 CAD
$57.36 CAD

Vendu en lots de : 1

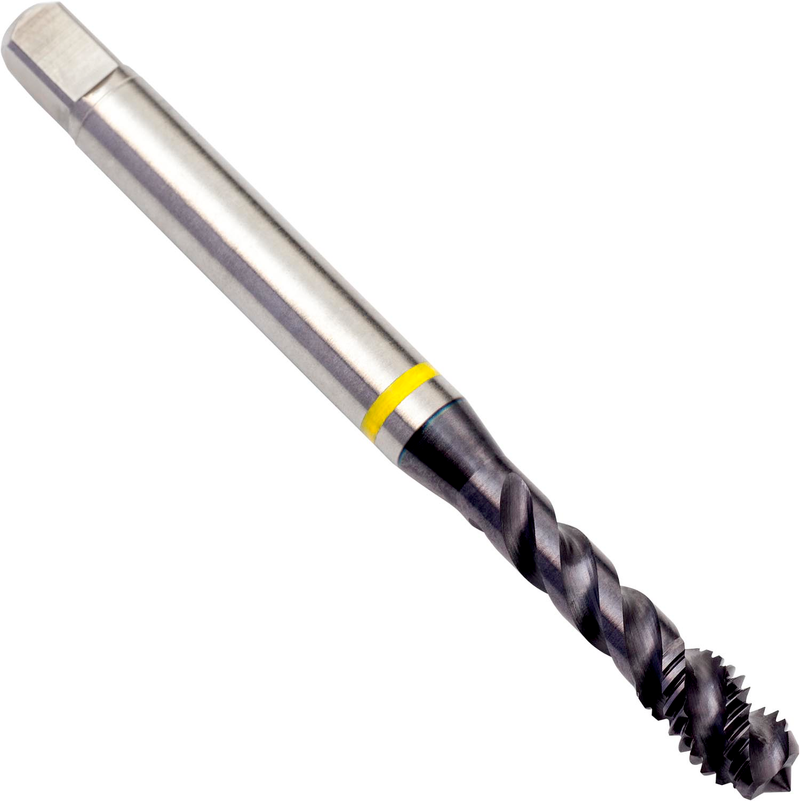

Taraud à gorge spirale Yellow Shark avec une forme de chanfrein C (entrée de 2 à 3 filets), pour filetage ISO-métrique M4 au pas de 0,70 mm et de classe de tolérance 6H, dimensions conformes à la norme DIN 371 avec queue de 4,5 mm et carré d'entraînement de 3,4 mm, HSS-E (acier rapide fritté) avec revêtement TiAlN-Top et angle d'hélice de 48° pour taraudage de trous borgnes jusqu'à 3xD dans les aciers et aciers moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E412M4
GradeTiAlN/Sommet
Product Number7441117
Product FamilyE412

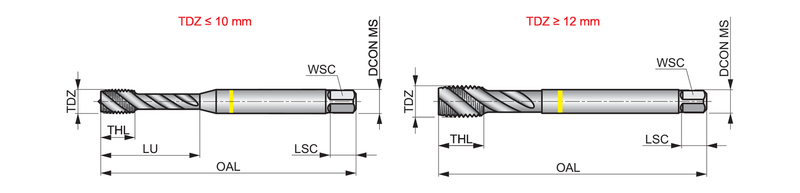

Dimensions
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)0.8268"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number7441117
EAN7320760778876
File Type Download
E412M4 — Line Drawing PDF Download
