UGC DOR7441119
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.01 CAD - $61.01 CAD
$61.01 CAD
$61.01 CAD - $61.01 CAD
$61.01 CAD

Vendu en lots de : 1

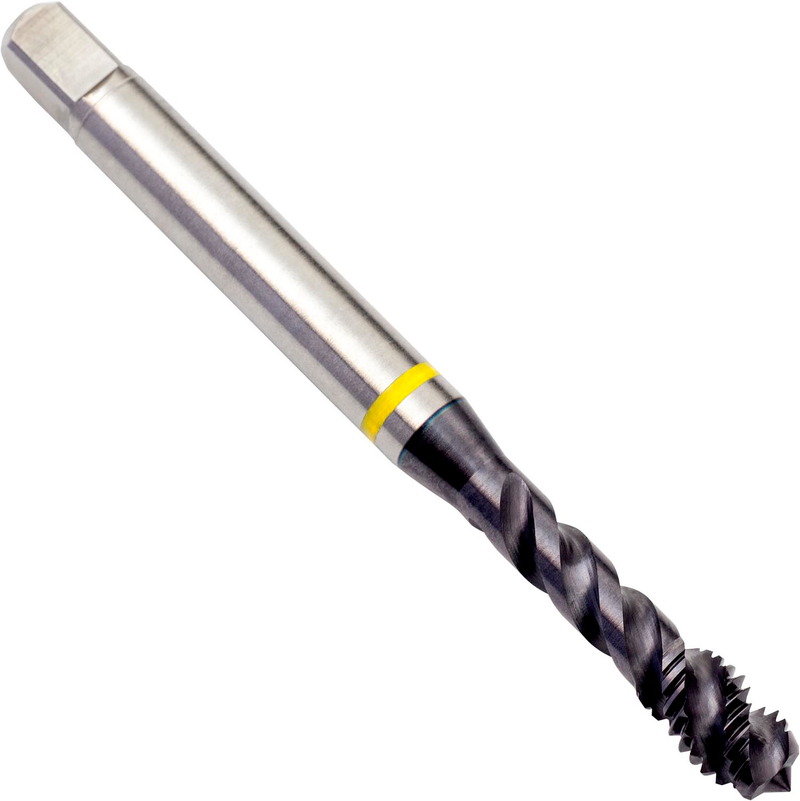

Taraud machine à goujures hélicoïdales Yellow Shark avec entrée forme C (filetage sur 2-3 filets), pour filetage ISO-Métrique M6 au pas de 1,00 mm et tolérance 6H, dimensions selon la norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E fritté avec revêtement TiAlN-Top et un angle d'hélice de 48° pour le taraudage de trous borgnes jusqu'à 3xD dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E412M6
GradeTiAlN/Sommet
Product Number7441119
Product FamilyE412

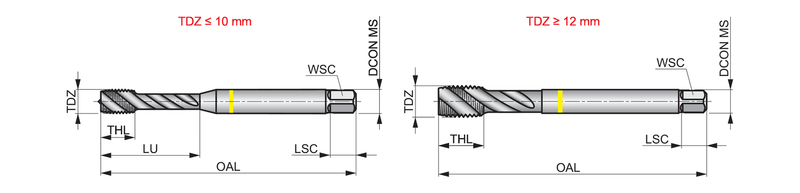

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)1.1811"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number7441119
EAN7320760778890
File Type Download
E412M6 — Line Drawing PDF Download
