UGC DOR7441192
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$110.03 CAD - $110.03 CAD
$110.03 CAD
$110.03 CAD - $110.03 CAD
$110.03 CAD

Vendu en lots de : 1

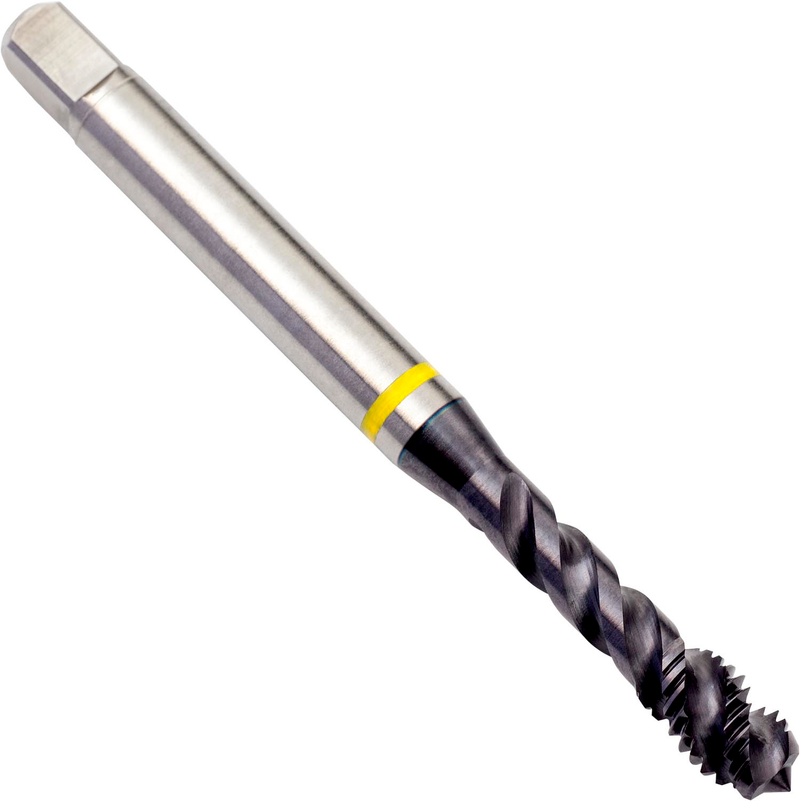

Taraud à gorge hélicoïdale Yellow Shark forme C avec entrée 2-3xP, pour filetage ISO-Métric M12 au pas de 1,75 mm et qualité 6H, dimensions selon norme DIN 376 avec queue de 9,0 mm et carré d'entraînement de 7,0 mm, en HSS-E PM avec revêtement TiAlN-Top et angle d'hélice de 48° pour taraudage de trous borgnes jusqu'à 3xD dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E412M12
GradeTiAlN/Sommet
Product Number7441192
Product FamilyE412

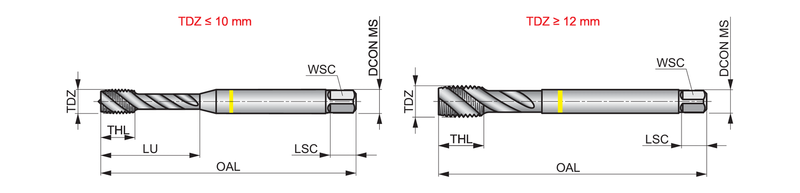

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number7441192
EAN7320760778920
File Type Download
E412M12 — Line Drawing PDF Download
