UGC DOR7441193
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$152.79 CAD - $152.79 CAD
$152.79 CAD
$152.79 CAD - $152.79 CAD
$152.79 CAD

Vendu en lots de : 1

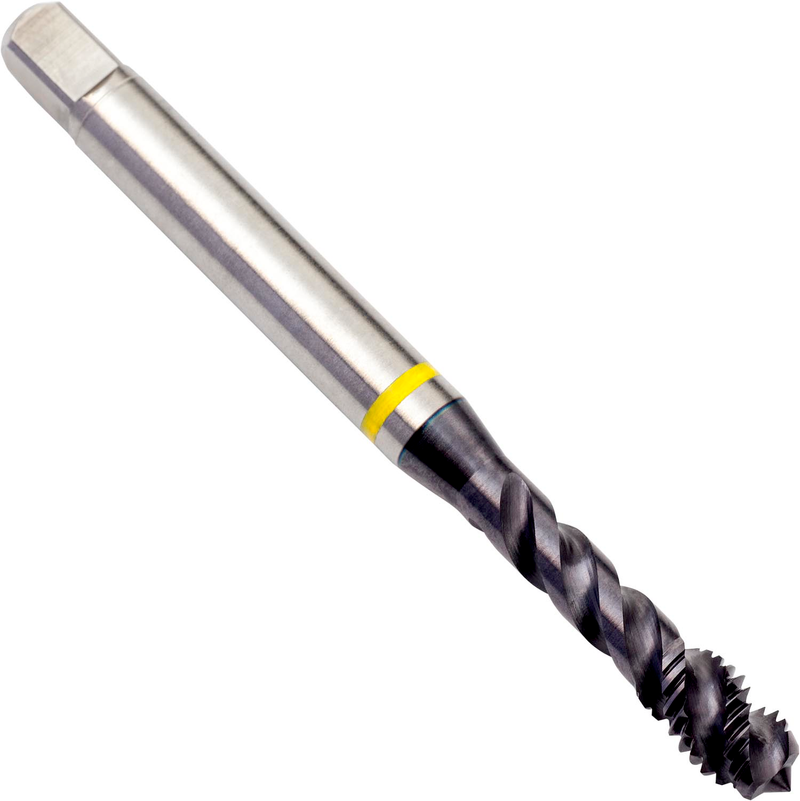

Taraud machine à goujures hélicoïdales Yellow Shark avec entrée forme C (2 à 3 filets), pour filetage ISO-Métrique M14 au pas de 2,00 mm et qualité 6H, dimensions selon la norme DIN 376 avec queue de 11,0 mm et carré d'entraînement de 9,0 mm, en HSS-E fritté avec revêtement TiAlN-Top et angle d'hélice de 48° pour le taraudage de trous borgnes jusqu'à 3xD dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E412M14
GradeTiAlN/Top
Product Number7441193
Product FamilyE412

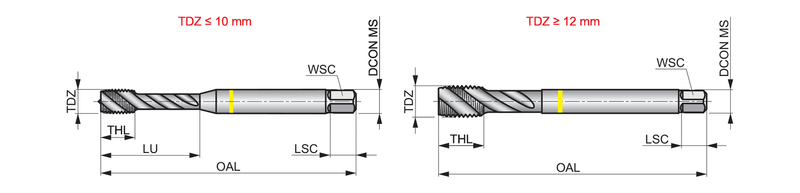

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)14
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number7441193
EAN7320760778937
File Type Download
E412M14 — Line Drawing PDF Download
