UGC DOR7441197
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$315.99 CAD - $315.99 CAD
$315.99 CAD
$315.99 CAD - $315.99 CAD
$315.99 CAD

Vendu en lots de : 1

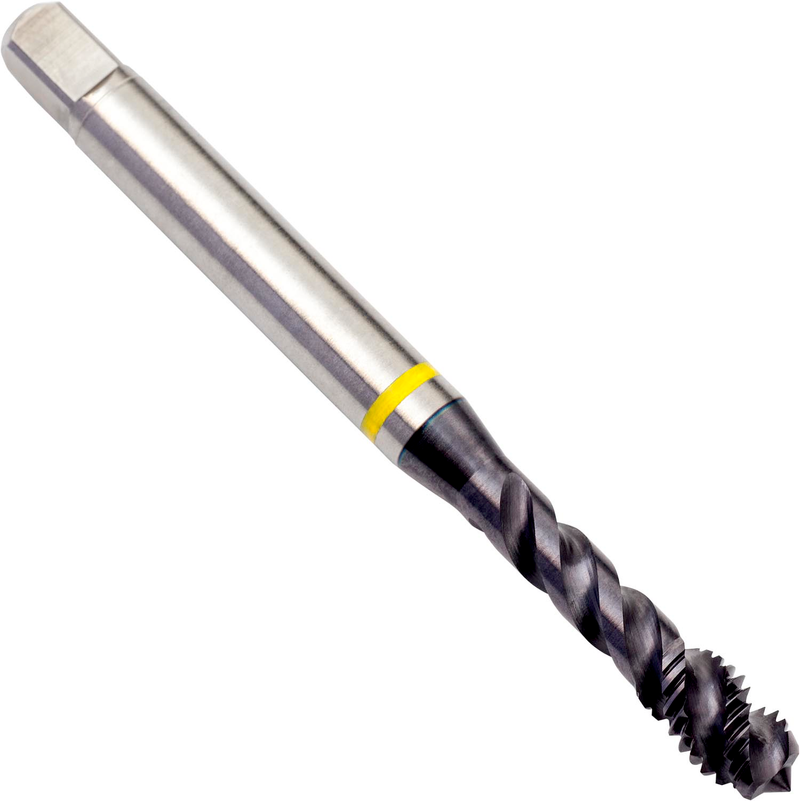

Taraud machine à goujures hélicoïdales Yellow Shark avec entrée forme C avec une prise de 2-3xP, pour filetage métrique ISO M24 au pas de 3,00 mm et de classe de tolérance 6H, dimensions selon la norme DIN 376 avec un diamètre de queue de 18,0 mm et un carré d'entraînement de 14,5 mm, en HSS-E fritté avec revêtement TiAlN-Top et un angle d'hélice de 48° pour le taraudage de trous borgnes jusqu'à 3xD dans les aciers et aciers moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E412M24
GradeTiAlN/Sommet
Product Number7441197
Product FamilyE412

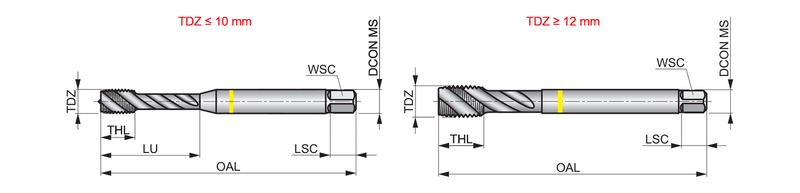

Dimensions
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)24
Thread Form (THFT)M - Metric coarse
Thread Pitch — mm (TP)3.0 mm
Thread Pitch — in (TP)0.1181"
Tool Information
ShankCylindrical shank with Square
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number7441197
EAN7320760778975
File Type Download
E412M24 — Line Drawing PDF Download
