E412M27
E412M27
E412M27

E412M27

UGC DOR7441198
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$454.69 CAD - $454.69 CAD
$454.69 CAD
$454.69 CAD - $454.69 CAD
$454.69 CAD

Vendu en lots de : 1

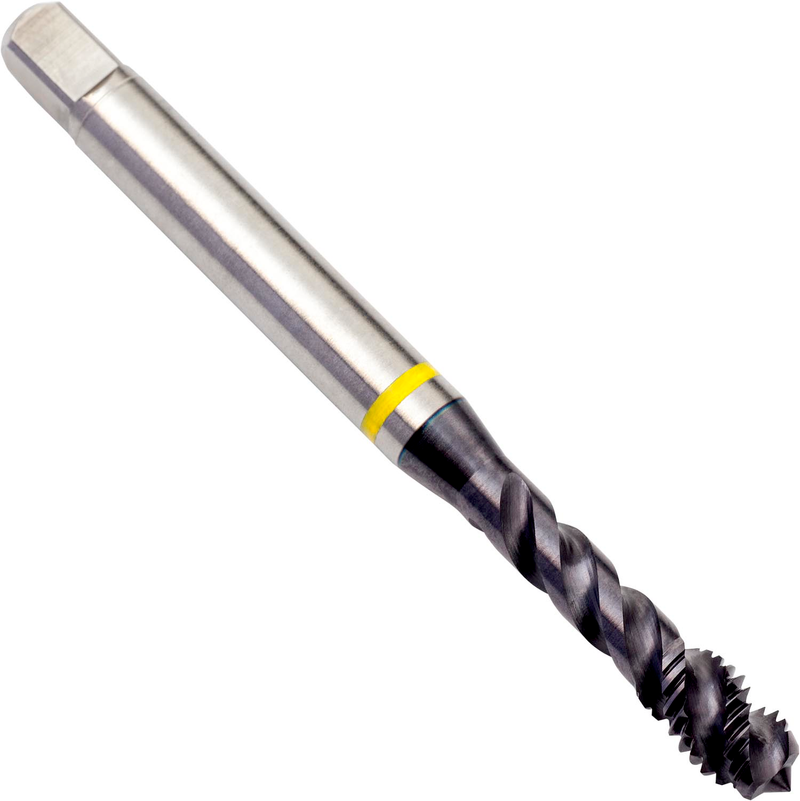

Taraud à spirale Yellow Shark forme C avec une entrée de 2-3xP, pour filetage métrique ISO M27 avec un pas de 3,00 mm et une tolérance 6H, dimensions selon la norme DIN 376 avec queue de 20,0 mm et carré d'entraînement de 16,0 mm, en HSS-E obtenu par métallurgie des poudres avec revêtement TiAlN-Top et un angle d'hélice de 48° pour le taraudage de trous borgnes jusqu'à 3xD dans l'acier et l'acier moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E412M27
GradeTiAlN/Top
Product Number7441198
Product FamilyE412

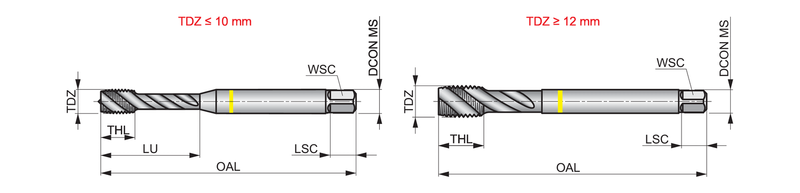

Dimensions
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)27
Thread Form (THFT)M - Metric coarse
Thread Pitch — mm (TP)3.0 mm
Thread Pitch — in (TP)0.1181"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
StandardDIN 376
Reference Numbers
EDP Number7441198
EAN7320760778982
File Type Download
E412M27 — Line Drawing PDF Download
