UGC DOR7441200
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.44 CAD - $59.44 CAD
$59.44 CAD
$59.44 CAD - $59.44 CAD
$59.44 CAD

Vendu en lots de : 1

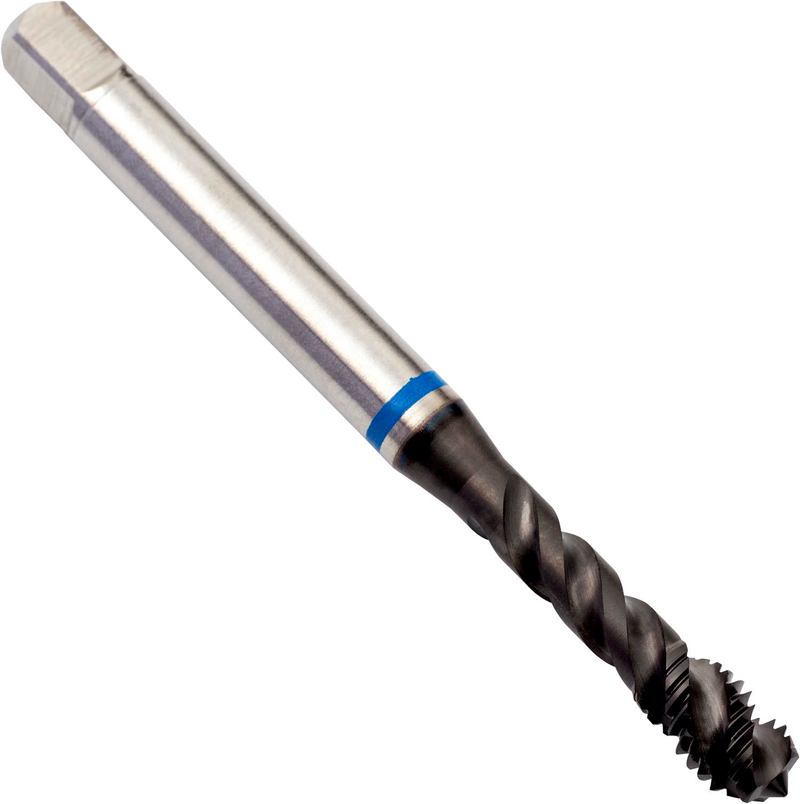

Taraud à gorge spirale Blue Shark forme de chanfrein C avec une entrée 2-3xP, pour filetage ISO-Métric M3 avec un pas de 0,50 mm et une classe de tolérance 6H, dimensions selon la norme DIN 371 avec une queue de 3,5 mm et un carré d'entraînement de 2,7 mm, en HSS-E métallurgie des poudres avec revêtement Super-B et un angle d'hélice de 48° pour le taraudage de trous borgnes 3xD dans les aciers inoxydables ferritiques, martensitiques et austénitiques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E414M3
GradeSUPER-B
Product Number7441200
Product FamilyE414

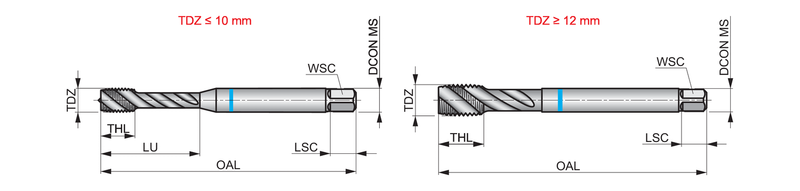

Dimensions
Overall Length — in (OAL)2.2047"
Overall Length — mm (OAL)56.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)0.7087"
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)3
Thread Form (THFT)M - Metric coarse
Thread Pitch — mm (TP)0.5 mm
Thread Pitch — in (TP)0.0197"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
StandardDIN 371
Reference Numbers
EDP Number7441200
EAN7320760779002
File Type Download
E414M3 — Line Drawing PDF Download
