UGC DOR7441201
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.49 CAD - $60.49 CAD
$60.49 CAD
$60.49 CAD - $60.49 CAD
$60.49 CAD

Vendu en lots de : 1

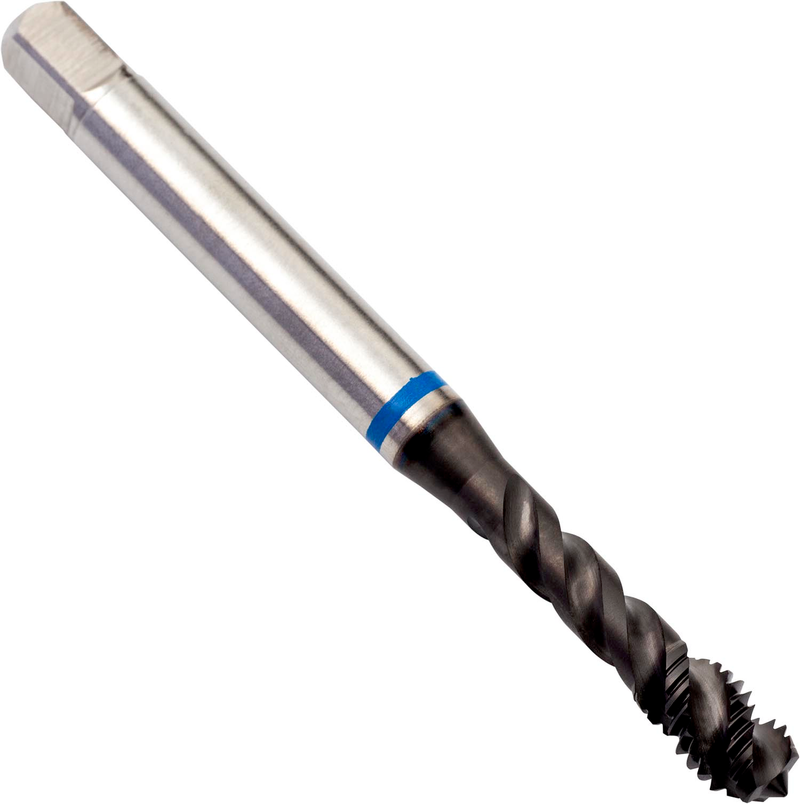

Taraud machine Blue Shark à goujures hélicoïdales, forme C avec entrée 2-3xP, pour filetages métriques ISO M4 au pas de 0,70 mm et tolérance 6H, dimensions selon norme DIN 371 avec queue de 4,5 mm et carré d'entraînement de 3,4 mm, en HSS-E fritté avec revêtement Super-B et un angle d'hélice de 48° pour le taraudage de trous borgnes jusqu'à 3xD dans les aciers inoxydables ferritiques, martensitiques et austénitiques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E414M4
GradeSUPER-B
Product Number7441201
Product FamilyE414

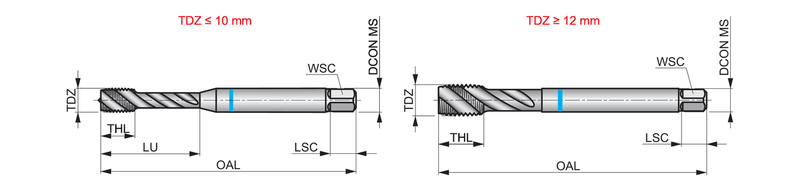

Dimensions
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)0.8268"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Metric coarse
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
StandardDIN 371
Reference Numbers
EDP Number7441201
EAN7320760779019
File Type Download
E414M4 — Line Drawing PDF Download
