E414M6
E414M6
E414M6

E414M6

UGC DOR7441203
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.61 CAD - $63.61 CAD
$63.61 CAD
$63.61 CAD - $63.61 CAD
$63.61 CAD

Vendu en lots de : 1

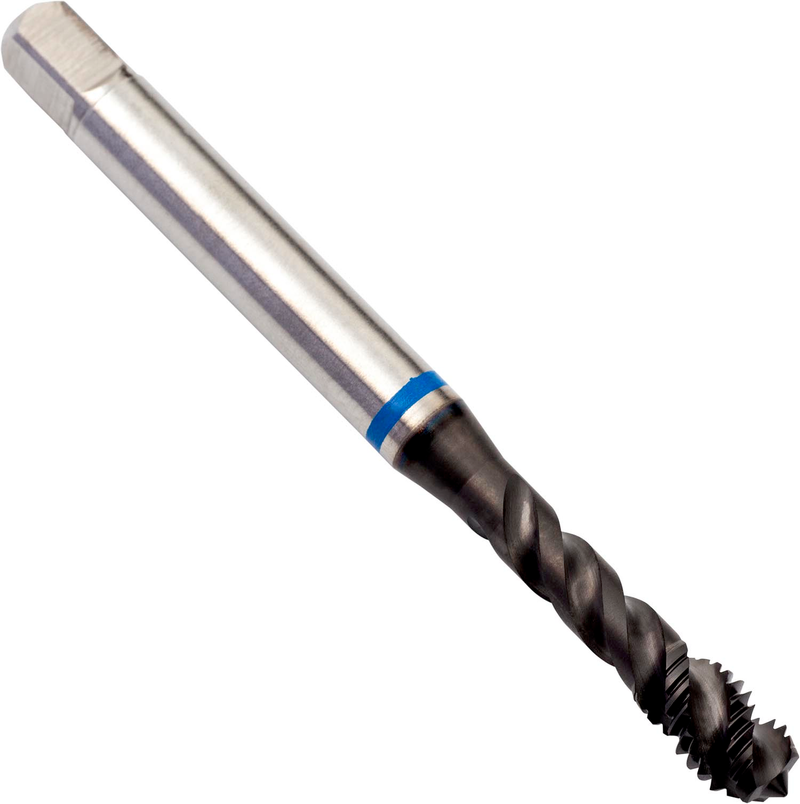

Taraud à gorge hélicoïdale Blue Shark avec chanfrein forme C avec un guide de 2-3xP, pour filetage ISO-métrique M6 avec un pas de 1,00 mm et une classe de tolérance 6H, dimensions selon la norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, HSS-E métallurgie des poudres avec revêtement Super-B et angle d'hélice de 48° pour taraudage de trous borgnes 3xD dans l'acier inoxydable ferritique, martensitique et austénitique

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E414M6
GradeSUPER-B
Product Number7441203
Product FamilyE414

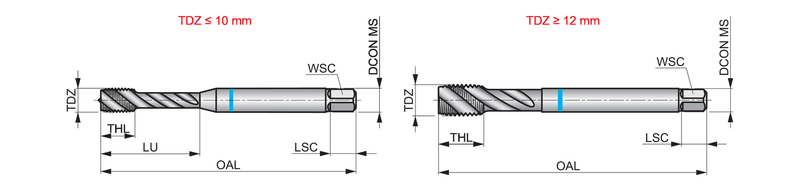

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)1.1811"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Metric coarse
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
StandardDIN 371
Reference Numbers
EDP Number7441203
EAN7320760779033
File Type Download
E414M6 — Line Drawing PDF Download
