UGC DOR7441204
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$73.00 CAD - $73.00 CAD
$73.00 CAD
$73.00 CAD - $73.00 CAD
$73.00 CAD

Vendu en lots de : 1

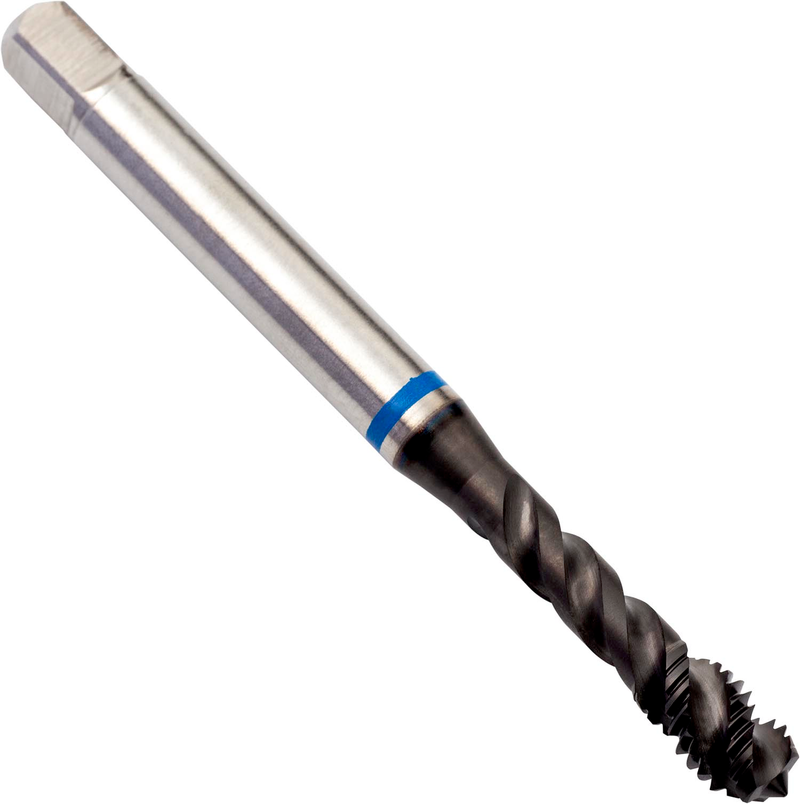

Taraud machine Blue Shark à goujures hélicoïdales, forme C avec entrée 2-3xP, pour filetage ISO-métrique M8 au pas de 1,25 mm et tolérance 6H, dimensions selon la norme DIN 371 avec queue de 8,0 mm et carré d'entraînement de 6,2 mm, en HSS-E PM avec revêtement Super-B et un angle d'hélice de 48° pour le taraudage de trous borgnes jusqu'à 3xD dans les aciers inoxydables ferritiques, martensitiques et austénitiques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E414M8
GradeSUPER-B
Product Number7441204
Product FamilyE414

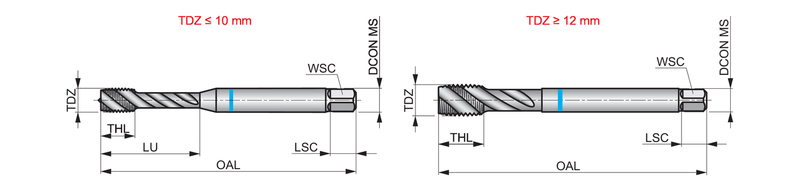

Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio3
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
StandardDIN 371
Reference Numbers
EDP Number7441204
EAN7320760779040
File Type Download
E414M8 — Line Drawing PDF Download
