E414M12
E414M12
E414M12

E414M12

UGC DOR7441206
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$115.76 CAD - $115.76 CAD
$115.76 CAD
$115.76 CAD - $115.76 CAD
$115.76 CAD

Vendu en lots de : 1

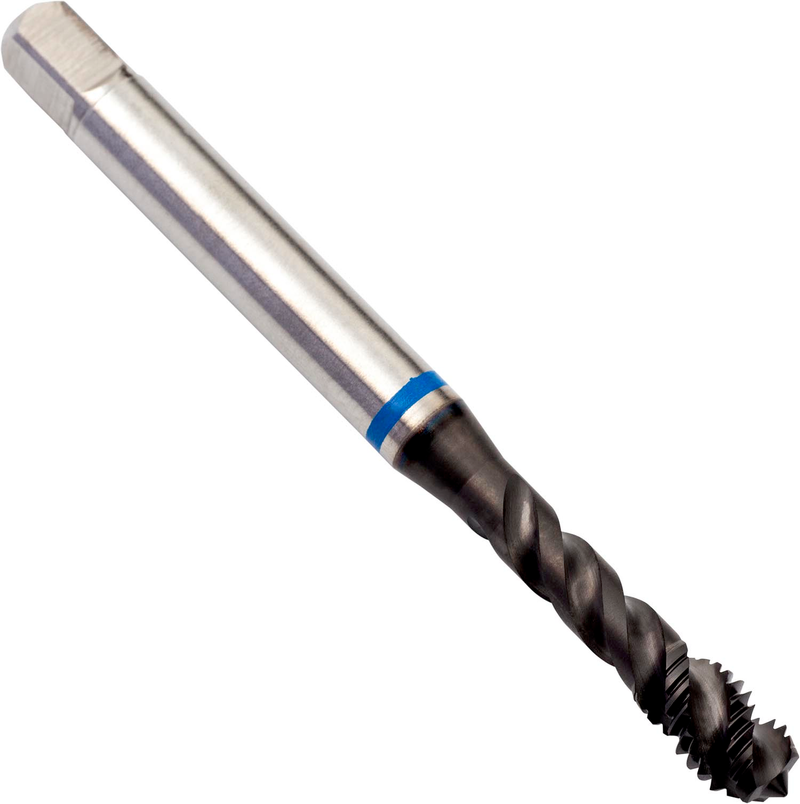

Taraud machine Blue Shark à goujures hélicoïdales, forme C avec entrée 2-3xP, pour filetage métrique ISO M12 au pas de 1,75 mm et de tolérance 6H, dimensions selon la norme DIN 376 avec queue de 9,0 mm et carré d'entraînement de 7,0 mm, en HSS-E PM avec revêtement Super-B et un angle d'hélice de 48° pour le taraudage de trous borgnes jusqu'à 3xD dans les aciers inoxydables ferritiques, martensitiques et austénitiques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E414M12
GradeSUPER-B
Product Number7441206
Product FamilyE414

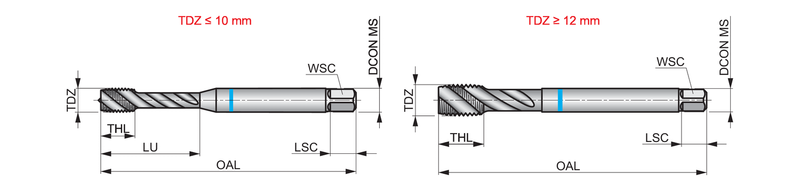

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number7441206
EAN7320760779064
File Type Download
E414M12 — Line Drawing PDF Download
