E414M16
E414M16
E414M16

E414M16

UGC DOR7441208
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$164.77 CAD - $164.77 CAD
$164.77 CAD
$164.77 CAD - $164.77 CAD
$164.77 CAD

Vendu en lots de : 1

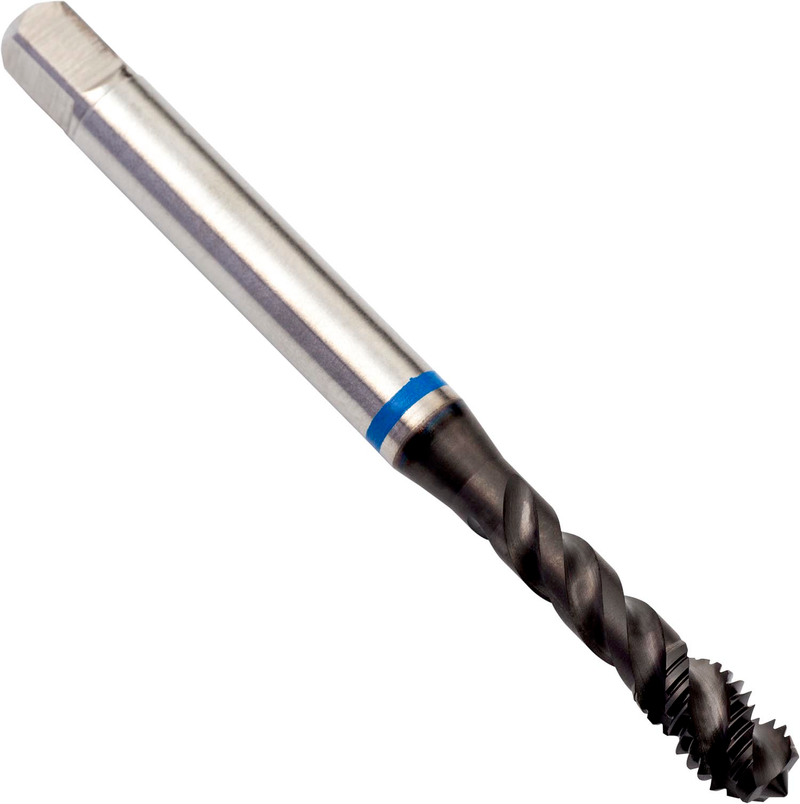

Taraud machine Blue Shark à goujures hélicoïdales avec entrée C de 2-3 filets, pour filet ISO-métrique M16 au pas de 2,00 mm et de tolérance 6H, dimensions selon la norme DIN 376 avec queue de 12,0 mm et carré d'entraînement de 9,0 mm, en HSS-E fritté avec revêtement Super-B et un angle d'hélice de 48° pour le taraudage de trous borgnes jusqu'à 3xD dans les aciers inoxydables ferritiques, martensitiques et austénitiques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E414M16
GradeSUPER-B
Product Number7441208
Product FamilyE414

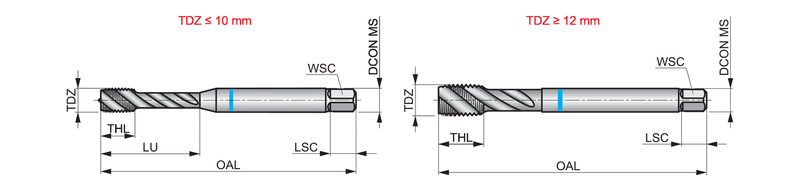

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.0787"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 376
Reference Numbers
EDP Number7441208
EAN7320760779088
File Type Download
E414M16 — Line Drawing PDF Download
