25E3R034A20-SRC10-C
25E3R034A20-SRC10-C
25E3R034A20-SRC10-C

25E3R034A20-SRC10-C

UGC DOR7444098
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$421.00 CAD - $421.00 CAD
$421.00 CAD
$421.00 CAD - $421.00 CAD
$421.00 CAD

Vendu en lots de : 1

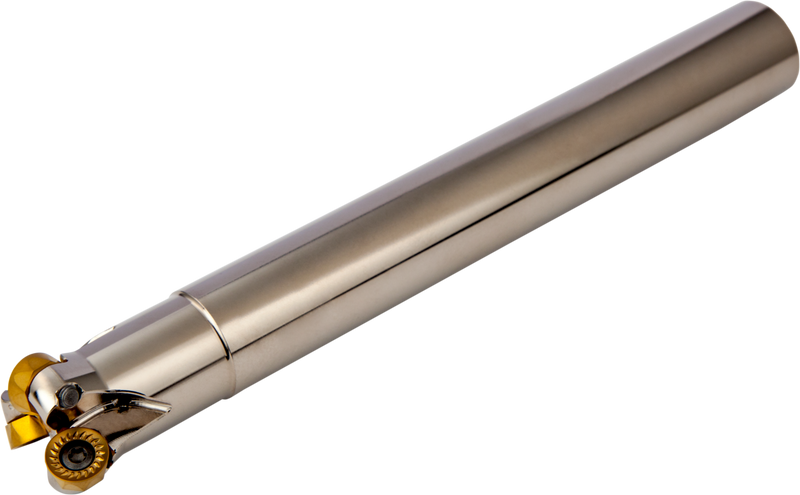

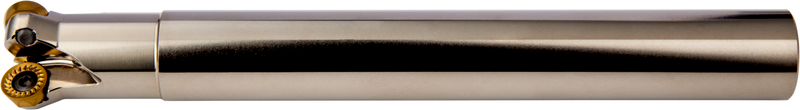

Fraise à surfacer à copier avec géométrie double négative qui utilise 3 plaquettes RCMT 10T3MO.. simple-face, diamètre de coupe 25mm avec queue cylindrique de 20mm selon DIN 1835A, longueur fonctionnelle 34mm et longueur totale 170mm, arrosage central pour le surfaçage, le copiage, l'usinage en rampe, le fraisage hélicoïdal et le plongement progressif avec une profondeur de coupe maximale de 5,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25E3R034A20-SRC10-C
Product Number7444098
Product FamilyRSC10
Insert Geometry
Depth of Cut Max — mm (APMX)1.46 mm

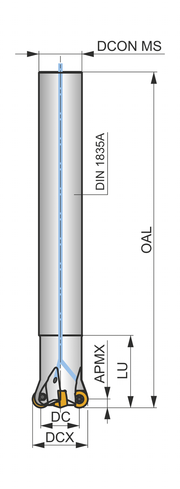

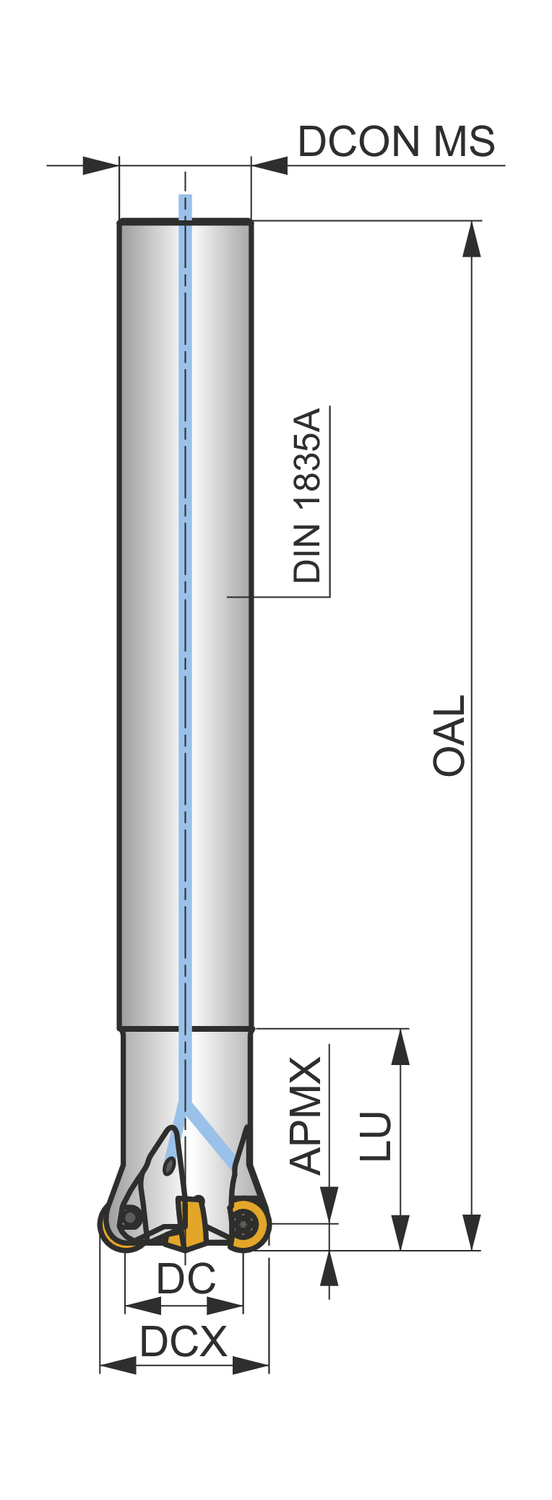

Dimensions
Cutting Diameter — in (DC)0.591"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)6.693"
Overall Length — mm (OAL)170.0 mm
Usable Length — mm (LU)34.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignRSC10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7444098
EAN3603603372047
File Type Download
25E3R034A20-SRC10-C — 3D Model STP Download
25E3R034A20-SRC10-C — 2D Model DXF Download
25E3R034A20-SRC10-C — Line Drawing PDF Download
