32E3R042A25-SRC10-C
32E3R042A25-SRC10-C
32E3R042A25-SRC10-C

32E3R042A25-SRC10-C

UGC DOR7444200
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$440.00 CAD - $440.00 CAD
$440.00 CAD
$440.00 CAD - $440.00 CAD
$440.00 CAD

Vendu en lots de : 1

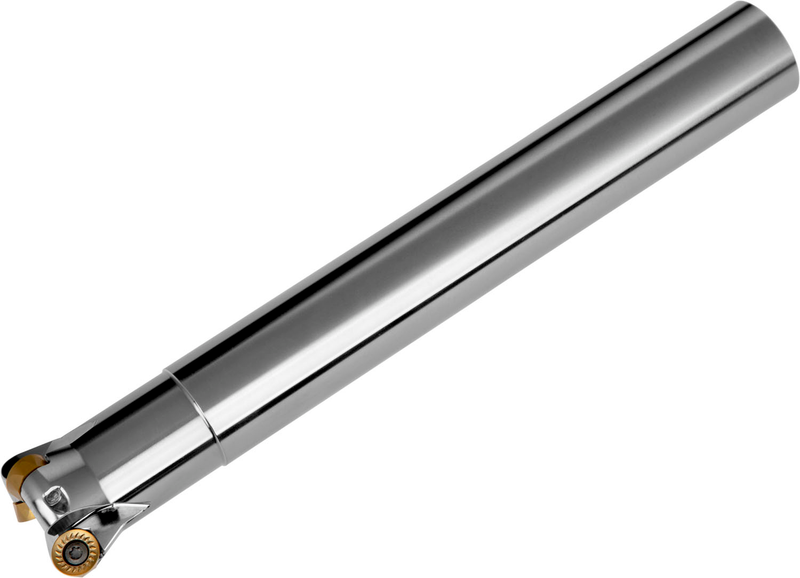

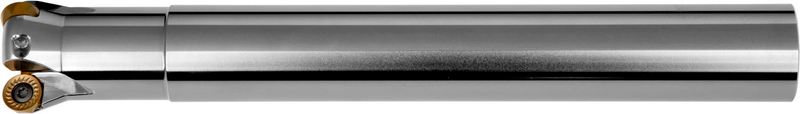

Fraise à copier avec double géométrie négative utilisant 4 plaquettes simple face RCMT 10T3MO.., diamètre de coupe 32mm avec queue cylindrique de 25mm selon DIN 1835A, longueur fonctionnelle 42mm et longueur totale 200mm, arrosage central pour le surfaçage, le copiage, l'interpolation hélicoïdale, le fraisage hélicoïdal et l'usinage en plongée progressive avec une profondeur de coupe maximale de 5.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E3R042A25-SRC10-C
Product Number7444200
Product FamilyRSC10
Insert Geometry
Depth of Cut Max — mm (APMX)1.46 mm

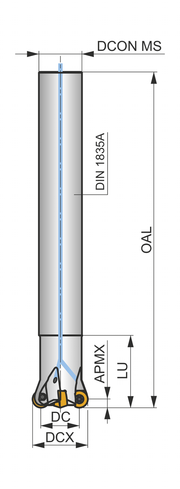

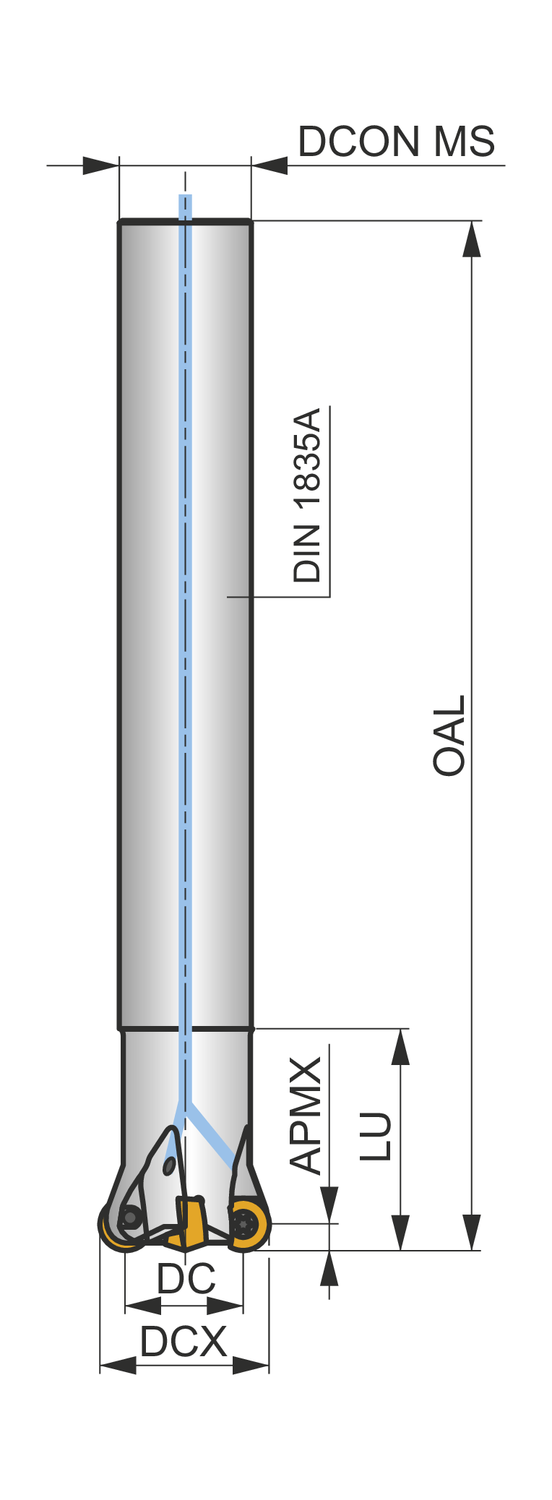

Dimensions
Cutting Diameter — in (DC)0.866"
Cutting Diameter — mm (DC)22.0 mm
Overall Length — in (OAL)7.874"
Overall Length — mm (OAL)200.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignRSC10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7444200
EAN3603603372061
File Type Download
32E3R042A25-SRC10-C — 3D Model STP Download
32E3R042A25-SRC10-C — 2D Model DXF Download
32E3R042A25-SRC10-C — Line Drawing PDF Download
