32E4R042M16-SRC10-C
32E4R042M16-SRC10-C
32E4R042M16-SRC10-C

32E4R042M16-SRC10-C

UGC DOR7444204
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$426.00 CAD - $426.00 CAD
$426.00 CAD
$426.00 CAD - $426.00 CAD
$426.00 CAD

Vendu en lots de : 1

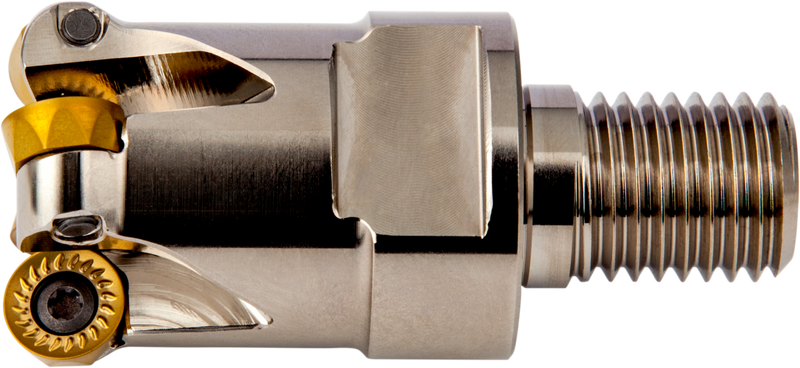

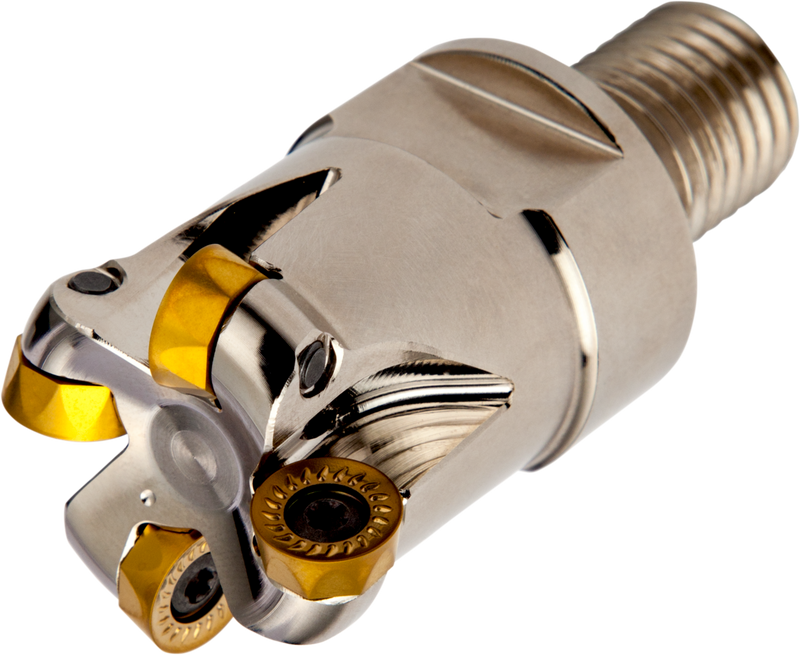

Fraise à copier avec géométrie double négative utilisant 4 plaquettes simple face RCMT 10T3MO.., diamètre de coupe 32mm avec queue filetée M16 pour porte-outils modulaires standards, longueur de projection 42mm, arrosage par l'intérieur pour le surfaçage, la copie, l'interpolation hélicoïdale, le rampage et le plongé progressif avec une profondeur de coupe maximale de 5.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32E4R042M16-SRC10-C
Product Number7444204
Product FamilyRSC10
Insert Geometry
Depth of Cut Max — mm (APMX)1.46 mm

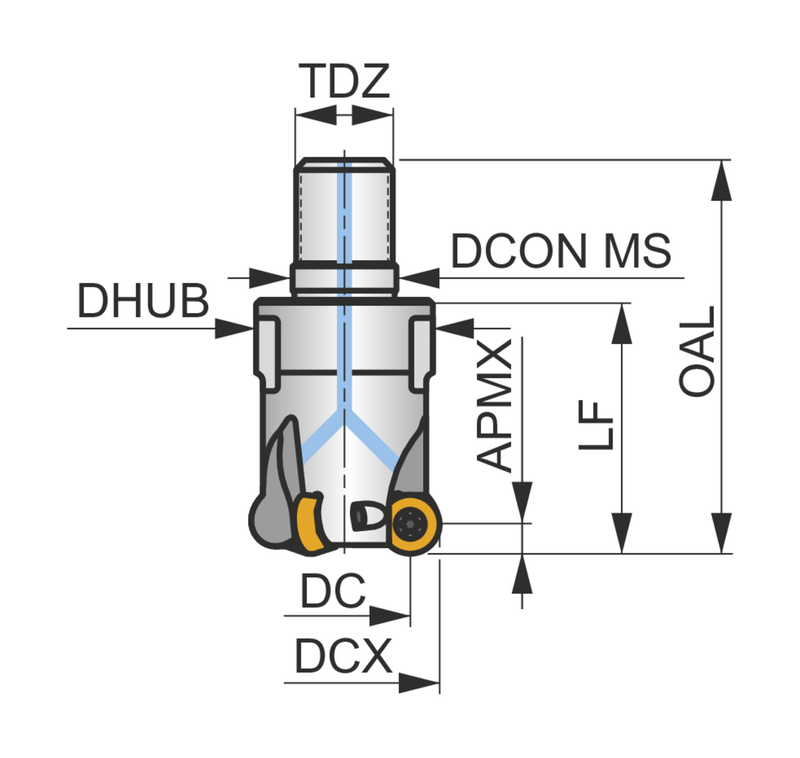

Dimensions
Cutting Diameter — in (DC)0.866"
Cutting Diameter — mm (DC)22.0 mm
Overall Length — in (OAL)2.559"
Overall Length — mm (OAL)65.0 mm
Functional Length — mm (LF)42.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignRSC10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7444204
EAN3603603372108
File Type Download
32E4R042M16-SRC10-C — 3D Model STP Download
32E4R042M16-SRC10-C — 2D Model DXF Download
32E4R042M16-SRC10-C — Line Drawing PDF Download
