50A06R-SMORC10-C
50A06R-SMORC10-C
50A06R-SMORC10-C

50A06R-SMORC10-C

UGC DOR7444332
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$547.00 CAD - $547.00 CAD
$547.00 CAD
$547.00 CAD - $547.00 CAD
$547.00 CAD

Vendu en lots de : 1

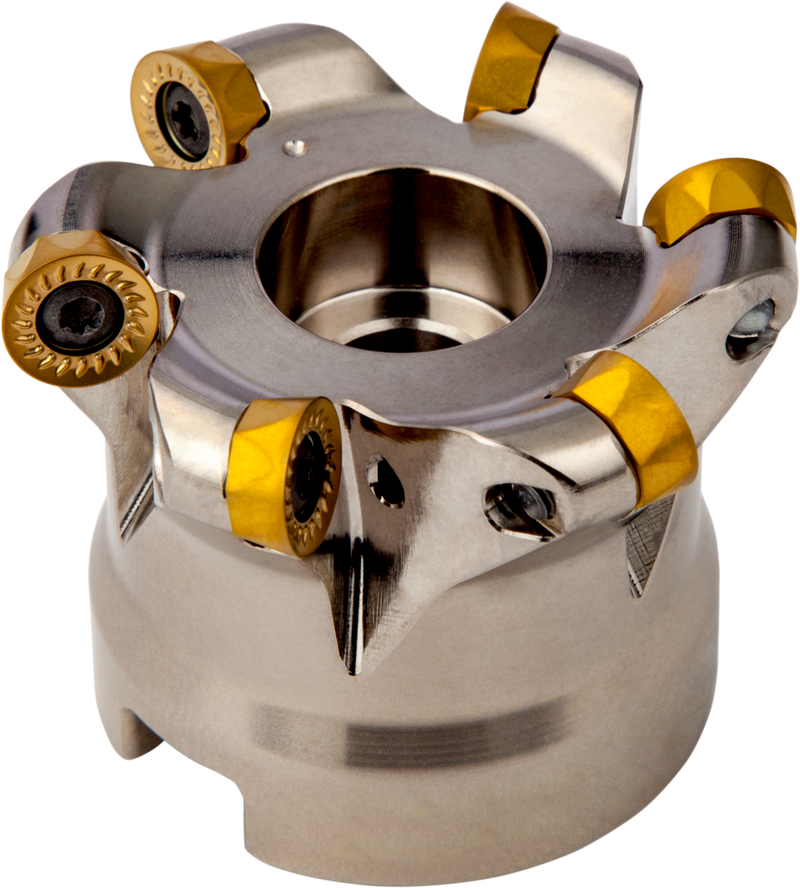

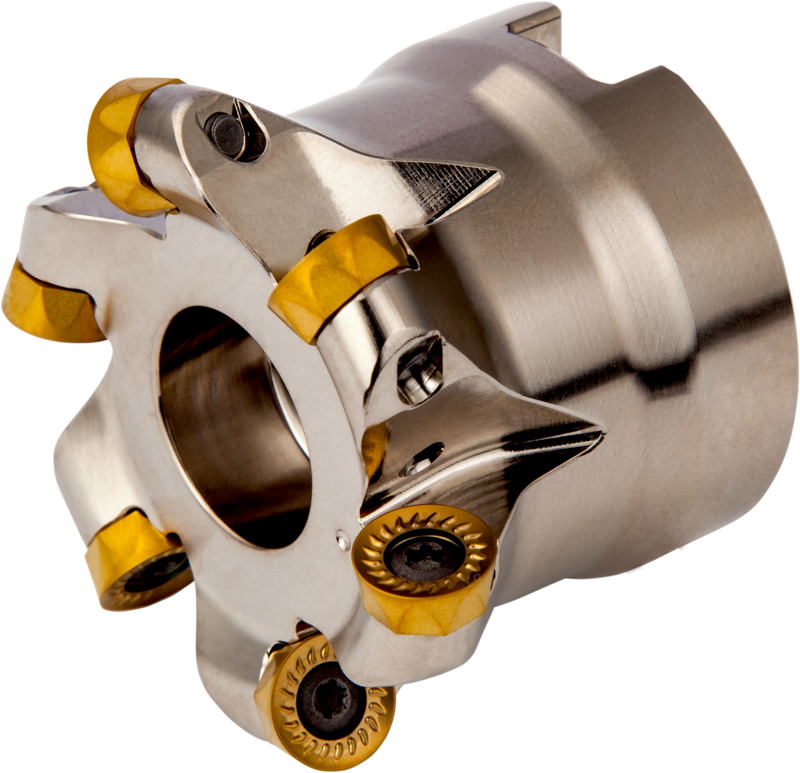

Fraise à copier avec double géométrie négative utilisant 6 plaquettes RCMT 10T3MO à une seule face, diamètre de coupe 50 mm avec alésage de raccordement de 22 mm selon DIN 8030-A, longueur de dépassement de 40 mm, arrosage central pour le surfaçage, le copiage, l'usinage en rampe, l'usinage hélicoïdal et le plongée progressive avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A06R-SMORC10-C
Product Number7444332
Product FamilyRSC10
Insert Geometry
Depth of Cut Max — mm (APMX)1.46 mm

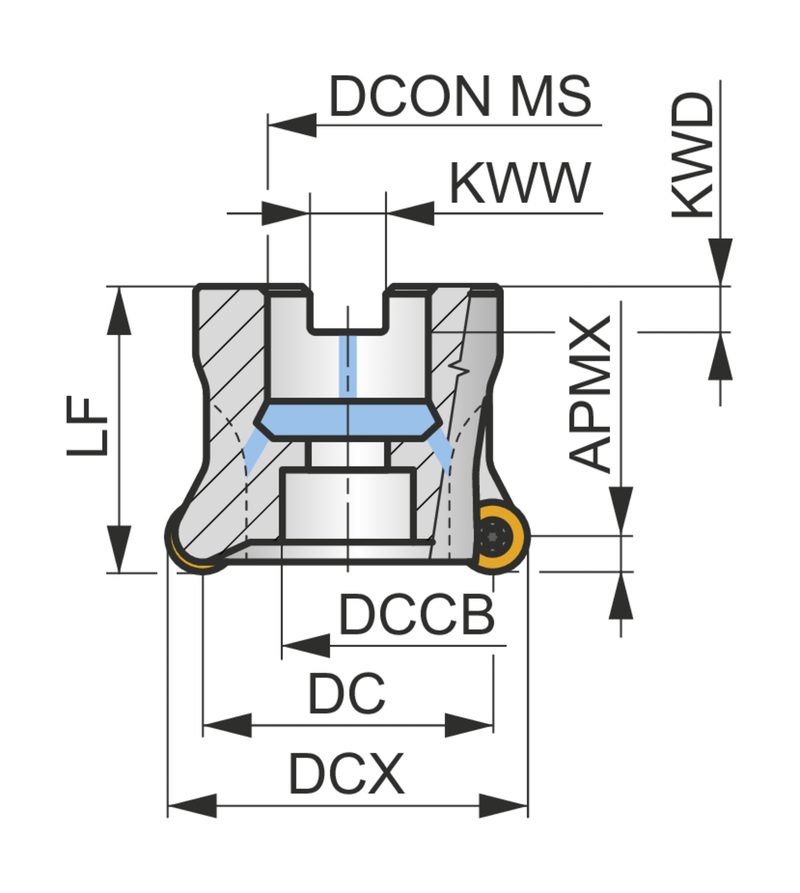

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignRSC10
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7444332
EAN3603603373037
File Type Download
50A06R-SMORC10-C — 3D Model STP Download
50A06R-SMORC10-C — 2D Model DXF Download
50A06R-SMORC10-C — Line Drawing PDF Download
