52A05R-SMORC10-C
52A05R-SMORC10-C
52A05R-SMORC10-C

52A05R-SMORC10-C

UGC DOR7444333
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$528.00 CAD - $528.00 CAD
$528.00 CAD
$528.00 CAD - $528.00 CAD
$528.00 CAD

Vendu en lots de : 1

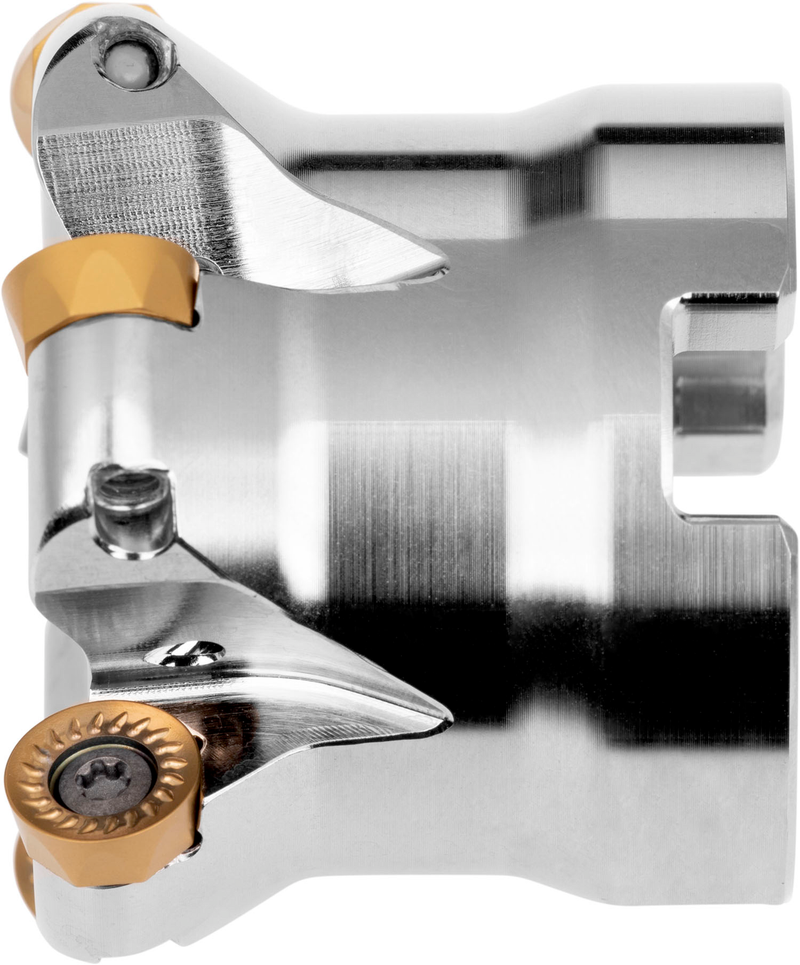

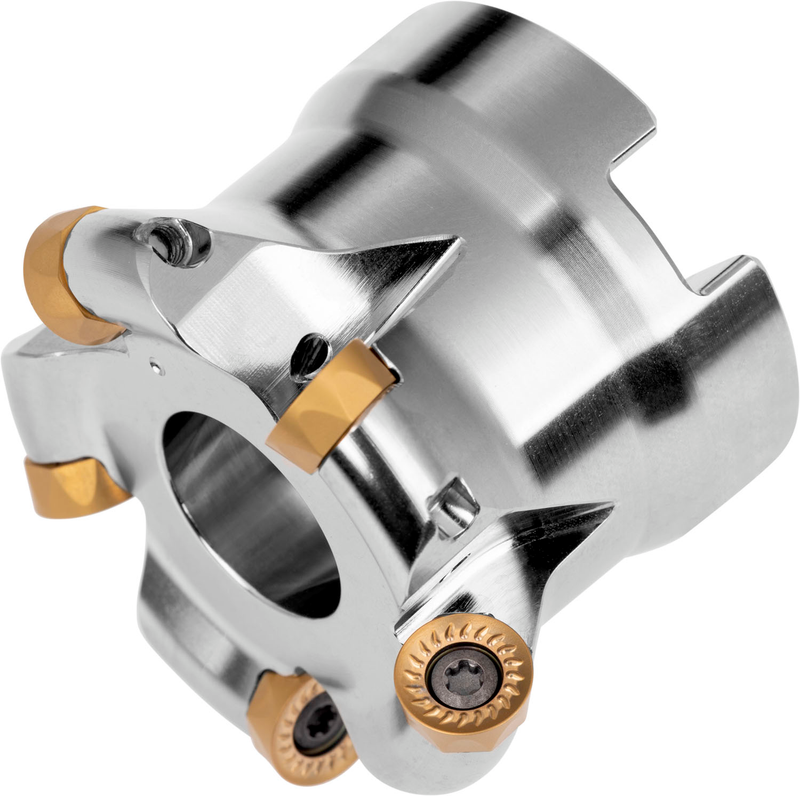

Fraise à surfacer à copier avec géométrie double négative utilisant 5 plaquettes simple face RCMT 10T3MO.., diamètre de coupe 52mm avec alésage de raccordement 22mm selon DIN 8030-A, longueur de dépassement 40mm, arrosage central pour surfaçage, fraisage à copier, usinage en ramping, fraisage hélicoïdal et fraisage en plongée progressive avec une profondeur de coupe maximale de 5.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)52A05R-SMORC10-C
Product Number7444333
Product FamilyRSC10
Insert Geometry
Depth of Cut Max — mm (APMX)1.46 mm

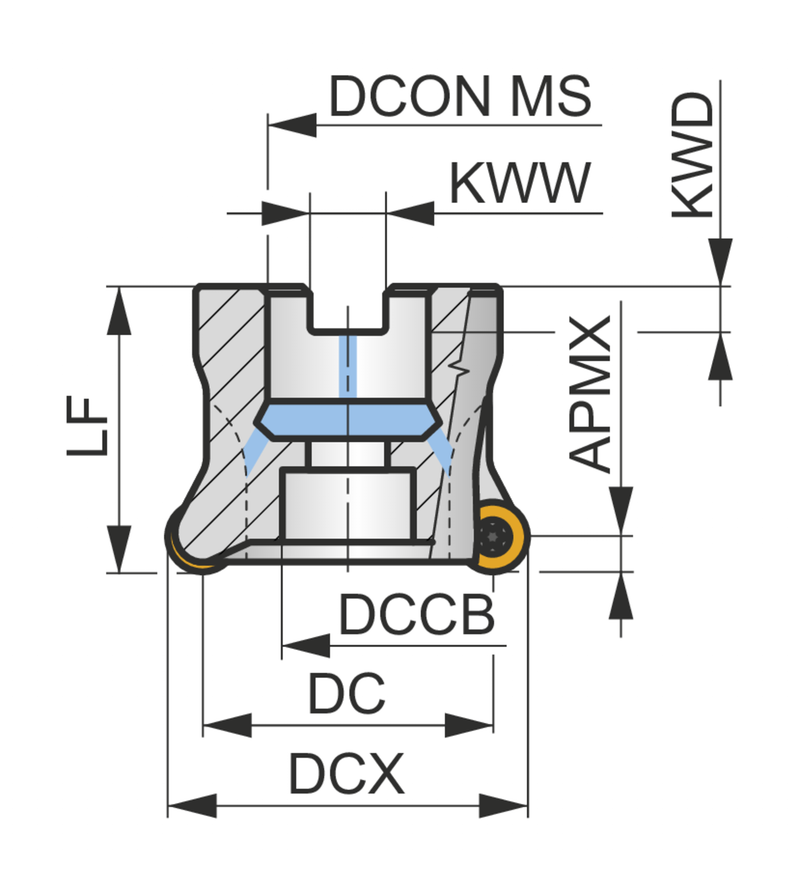

Dimensions
Cutting Diameter — in (DC)1.654"
Cutting Diameter — mm (DC)42.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignRSC10
ShankFraise hémisphérique DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7444333
EAN3603603373044
File Type Download
52A05R-SMORC10-C — 3D Model STP Download
52A05R-SMORC10-C — 2D Model DXF Download
52A05R-SMORC10-C — Line Drawing PDF Download
