52A06R-SMORC10-C
52A06R-SMORC10-C
52A06R-SMORC10-C

52A06R-SMORC10-C

UGC DOR7444334
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$550.00 CAD - $550.00 CAD
$550.00 CAD
$550.00 CAD - $550.00 CAD
$550.00 CAD

Vendu en lots de : 1

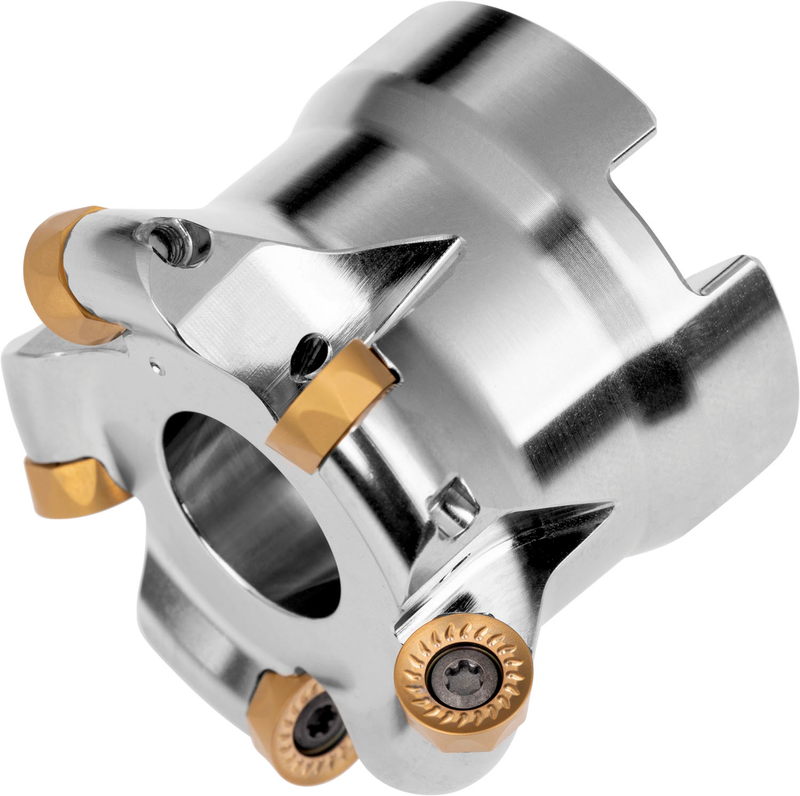

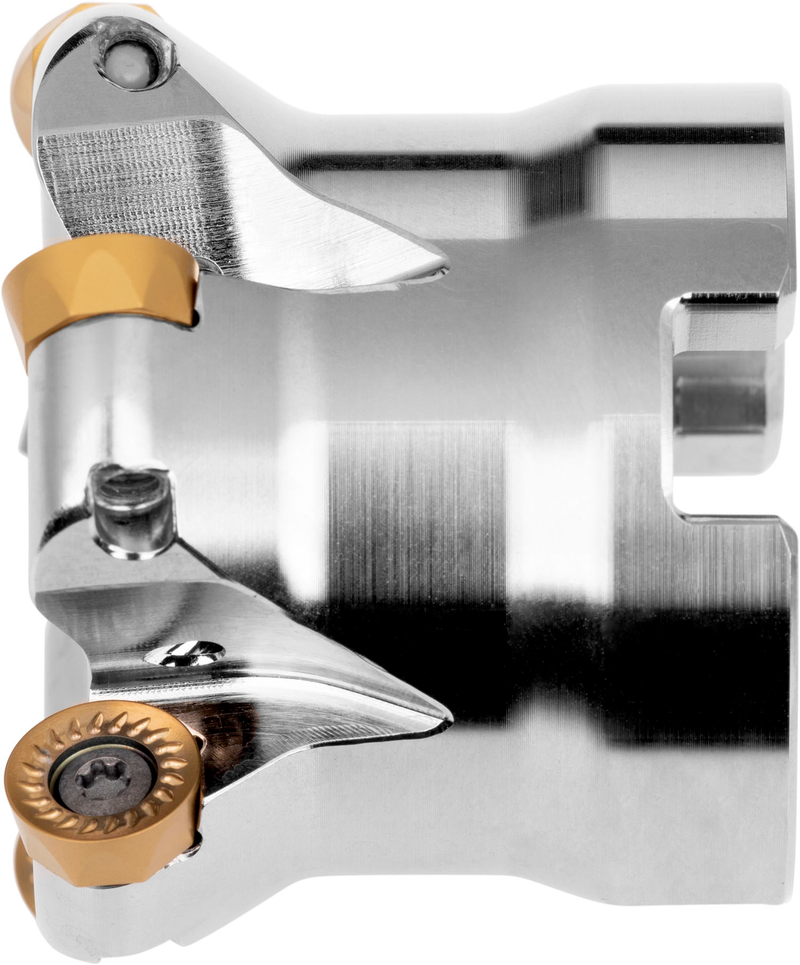

Fraise à surfacer à copier avec double géométrie négative utilisant 6 plaquettes simple face RCMT 10T3MO.., diamètre de coupe 52mm avec alésage de connexion 22mm selon DIN 8030-A, longueur de dépassement 40mm, lubrification par le centre pour surfaçage, fraisage en copiage, fraisage en ramping, fraisage hélicoïdal et fraisage en plongée progressive avec une profondeur de coupe maximale de 5,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)52A06R-SMORC10-C
Product Number7444334
Product FamilyRSC10
Insert Geometry
Depth of Cut Max — mm (APMX)1.46 mm

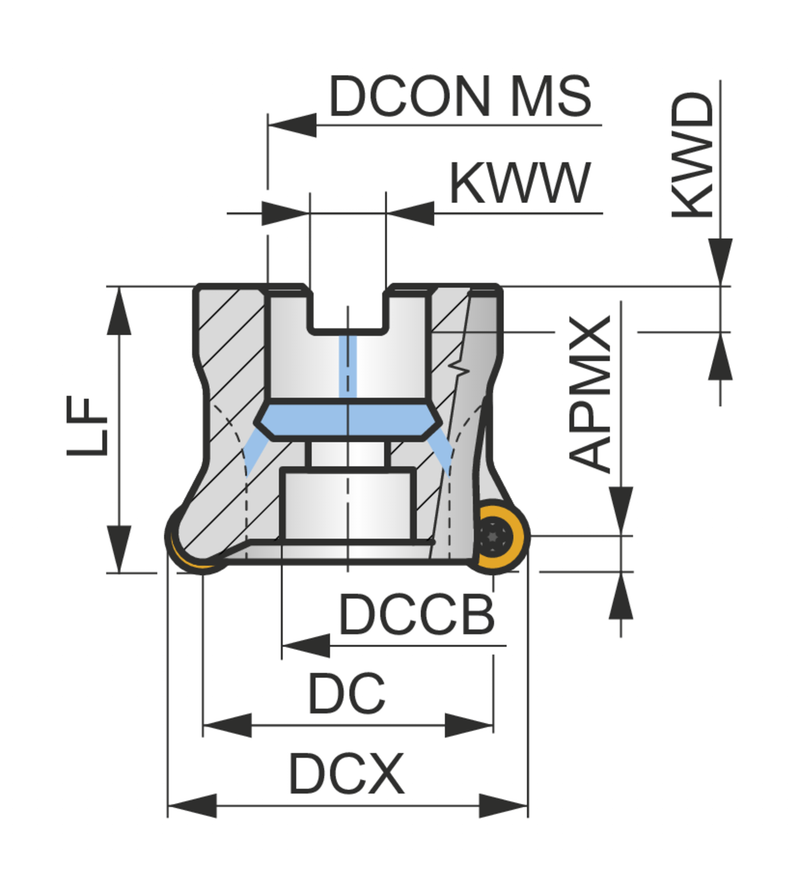

Dimensions
Cutting Diameter — in (DC)1.654"
Cutting Diameter — mm (DC)42.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignRSC10
ShankFraise deux tailles DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7444334
EAN3603603373051
File Type Download
52A06R-SMORC10-C — 3D Model STP Download
52A06R-SMORC10-C — 2D Model DXF Download
52A06R-SMORC10-C — Line Drawing PDF Download
