63A06R-SMORC10-C
63A06R-SMORC10-C
63A06R-SMORC10-C

63A06R-SMORC10-C

UGC DOR7444335
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$627.00 CAD - $627.00 CAD
$627.00 CAD
$627.00 CAD - $627.00 CAD
$627.00 CAD

Vendu en lots de : 1

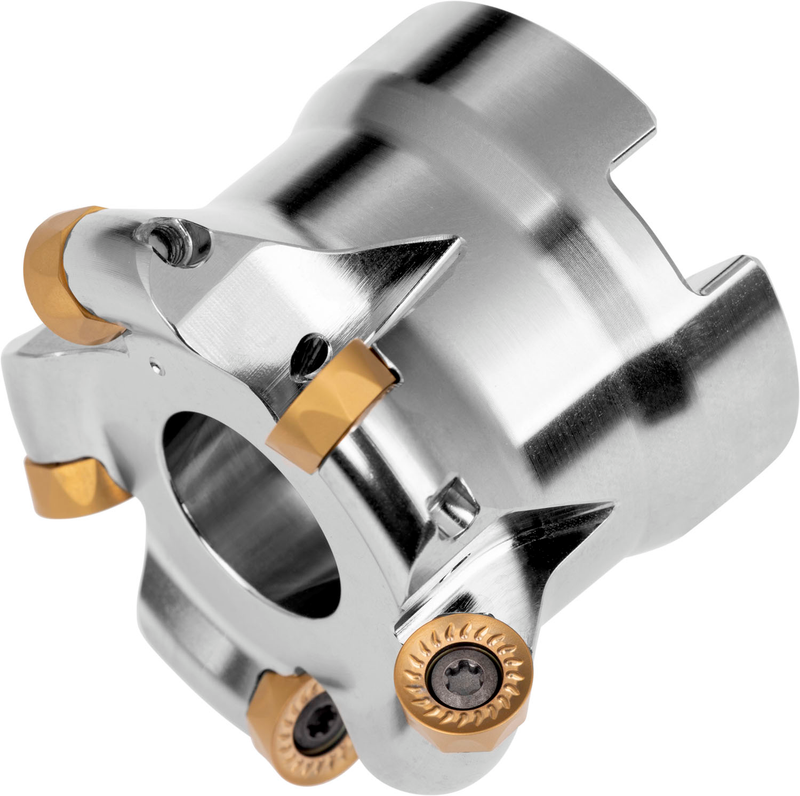

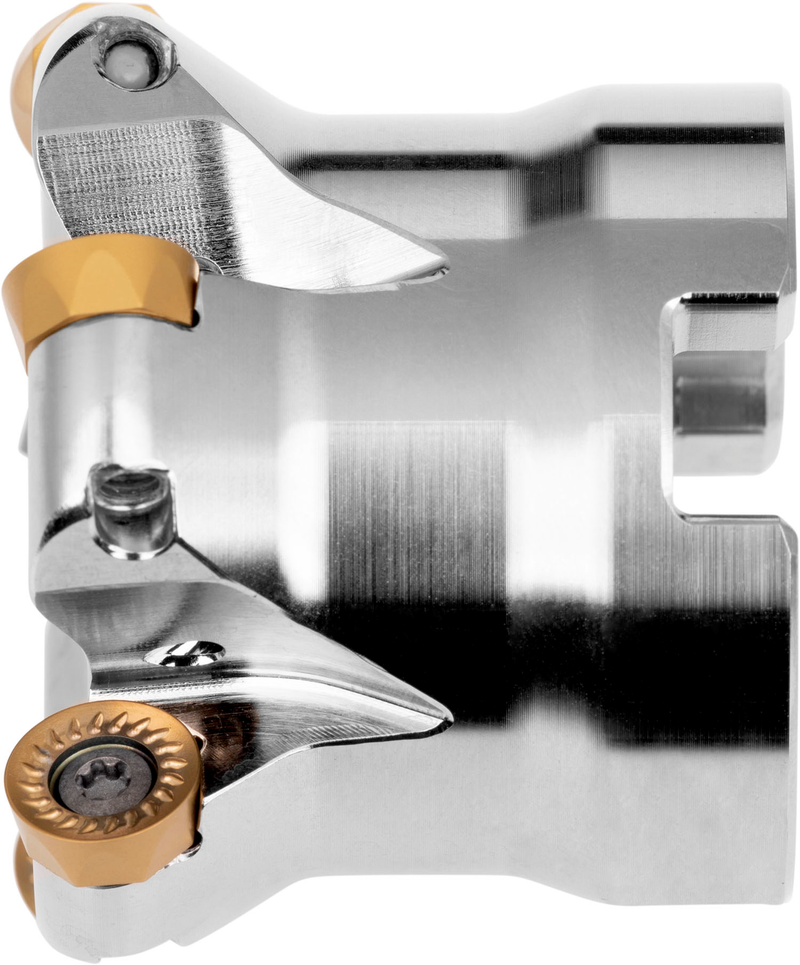

Fraise à surfacer à copier avec géométrie double négative qui utilise 6 plaquettes simple-face RCMT 10T3MO.., diamètre de coupe de 63 mm avec alésage de connexion de 22 mm selon DIN 8030-A, longueur de dépassement de 40 mm, arrosage centralisé pour le surfaçage, le copiage, le ramping, le fraisage hélicoïdal et le fraisage en plongée progressive avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A06R-SMORC10-C
Product Number7444335
Product FamilyRSC10
Insert Geometry
Depth of Cut Max — mm (APMX)1.46 mm

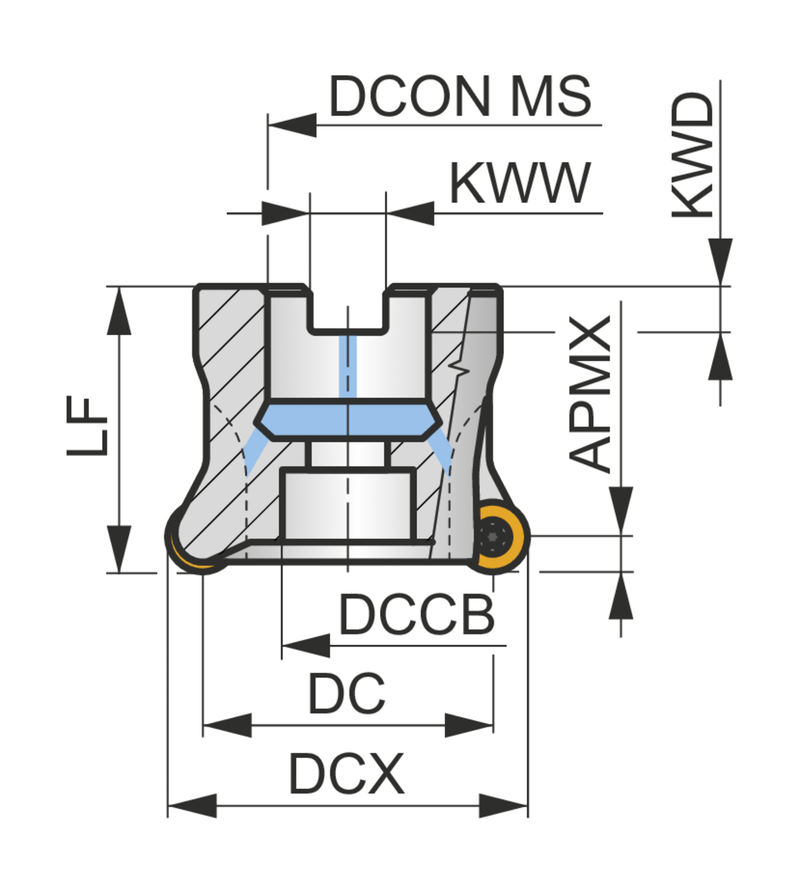

Dimensions
Cutting Diameter — in (DC)2.087"
Cutting Diameter — mm (DC)53.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignRSC10
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7444335
EAN3603603373068
File Type Download
63A06R-SMORC10-C — 3D Model STP Download
63A06R-SMORC10-C — 2D Model DXF Download
63A06R-SMORC10-C — Line Drawing PDF Download
