66A07R-SMORC10-C
66A07R-SMORC10-C
66A07R-SMORC10-C

66A07R-SMORC10-C

UGC DOR7444338
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$652.00 CAD - $652.00 CAD
$652.00 CAD
$652.00 CAD - $652.00 CAD
$652.00 CAD

Vendu en lots de : 1

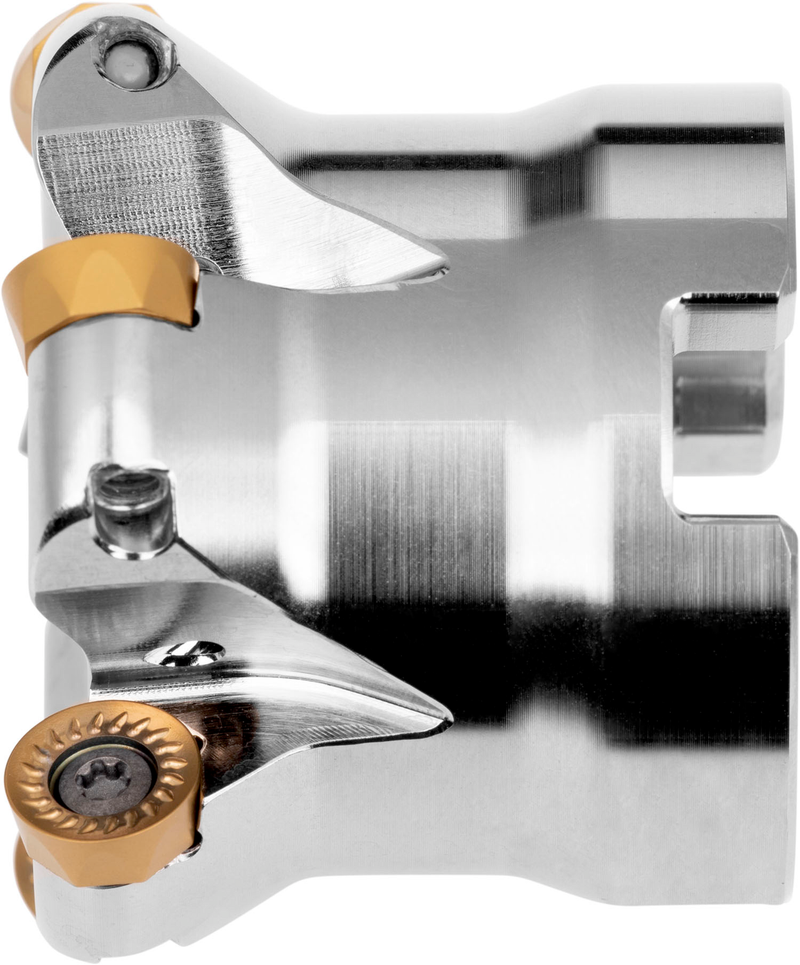

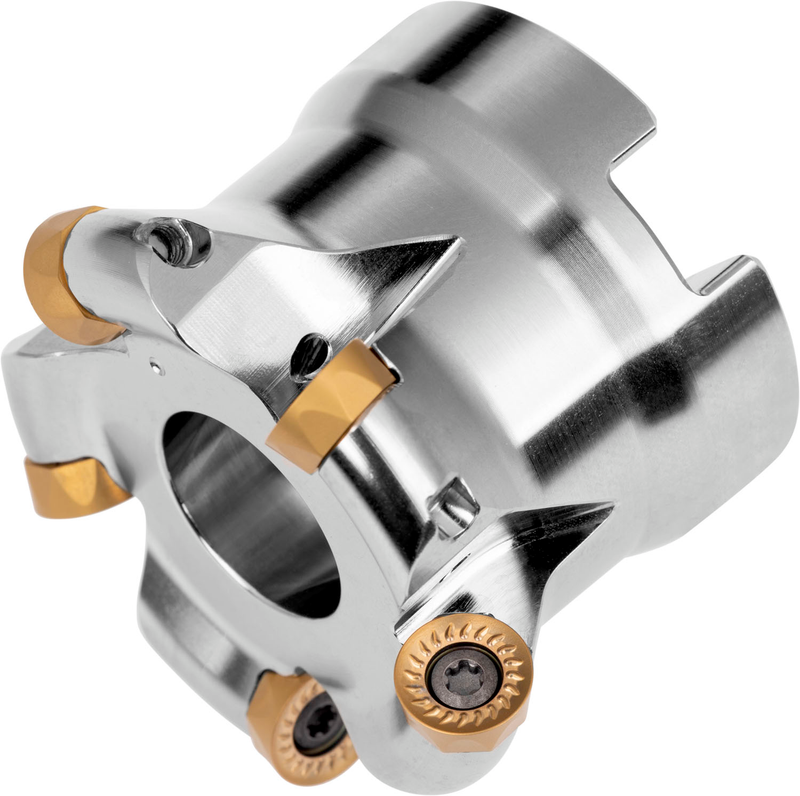

Fraise à surfacer-à copier avec une géométrie double négative utilisant 7 plaquettes RCMT 10T3MO.. simple face, diamètre de coupe 66 mm avec un alésage de raccordement de 27 mm selon la norme DIN 8030-A, longueur de dépassement de 50 mm, arrosage central pour le surfaçage, le copiage, l'interpolation hélicoïdale, le fraisage en rampe et l'usinage par plongées successives avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)66A07R-SMORC10-C
Product Number7444338
Product FamilyRSC10
Insert Geometry
Depth of Cut Max — mm (APMX)1.46 mm

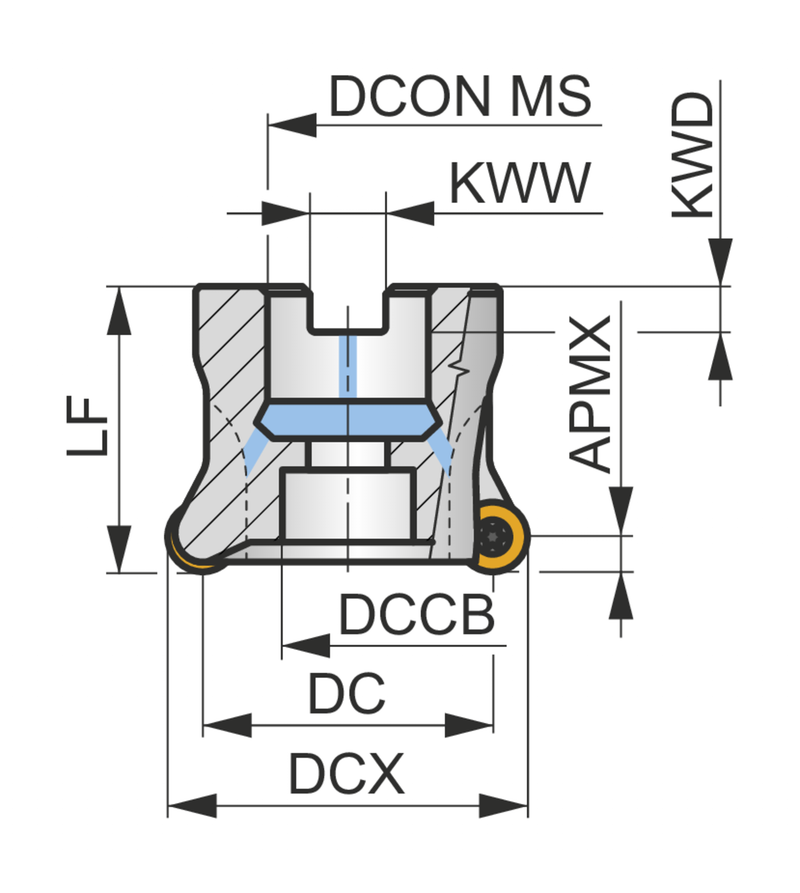

Dimensions
Cutting Diameter — in (DC)2.205"
Cutting Diameter — mm (DC)56.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignRSC10
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7444338
EAN3603603373099
File Type Download
66A07R-SMORC10-C — 3D Model STP Download
66A07R-SMORC10-C — 2D Model DXF Download
66A07R-SMORC10-C — Line Drawing PDF Download
