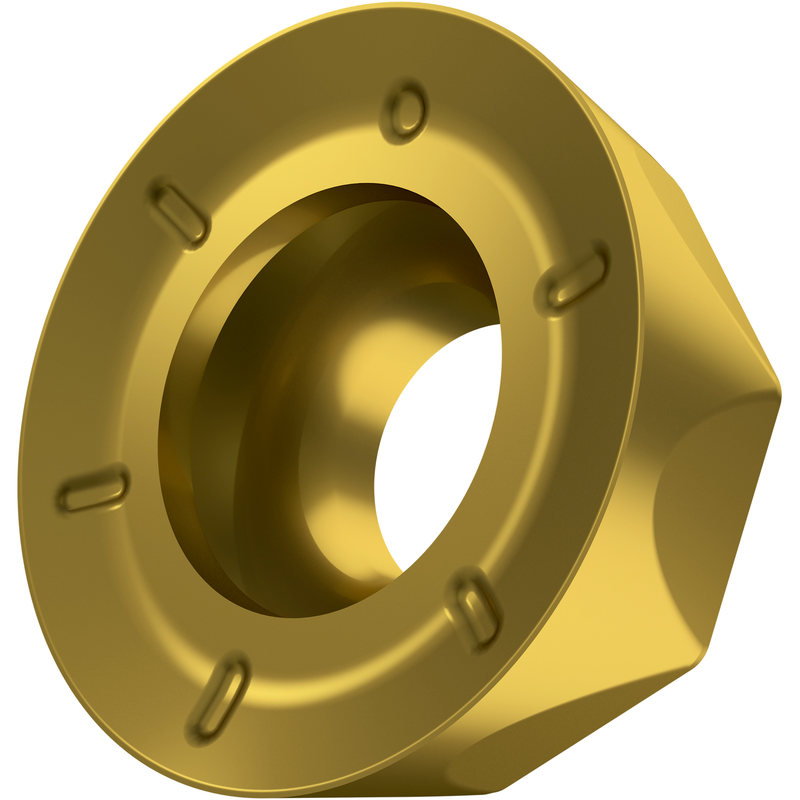

RCMT 10T3MOSN-F:M8330
RCMT 10T3MOSN-F:M8330

RCMT 10T3MOSN-F:M8330

UGC DOR7445759
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.09 CAD - $15.09 CAD
$15.09 CAD
$15.09 CAD - $15.09 CAD
$15.09 CAD

Vendu en lots de : 10

Plaquette de fraisage simple face RCMT 10T3 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 5 mm, avec rayon de coin, une précision de positionnement selon la classe de tolérance ISO-M et une géométrie F avec arêtes de coupe et facettes arrondies, carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO P20-P40 pour l'usinage de l'acier avec les fraises à copier SRC10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOSN-F:M8330
GradeM8330
Chipbreaker (CBMD)F
Product Number7445759
Product FamilyRCMT 10
Insert Geometry
Insert DesignCRTMC
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7445759
EAN3603603380035
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download

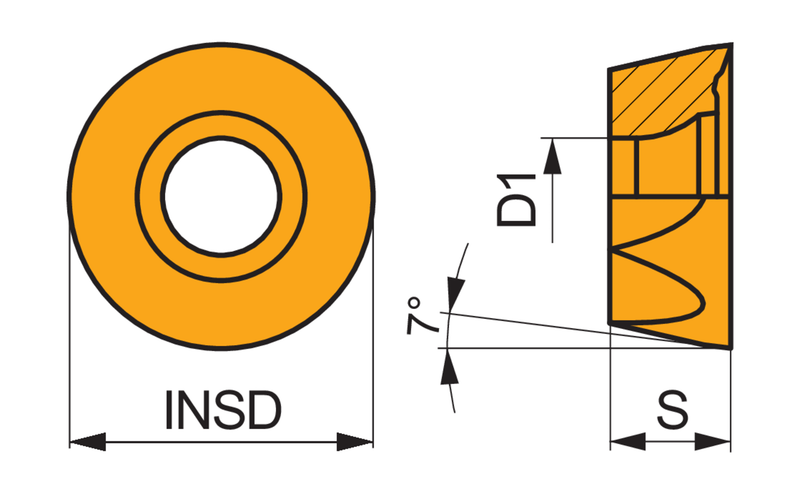

RCMT 10T3MOSN-F:M8330 — Line Drawing PDF Download
