RCMT 10T3MOSN-F:M6330
RCMT 10T3MOSN-F:M6330

RCMT 10T3MOSN-F:M6330

UGC DOR7445881
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.09 CAD - $15.09 CAD
$15.09 CAD
$15.09 CAD - $15.09 CAD
$15.09 CAD

Vendu en lots de : 10

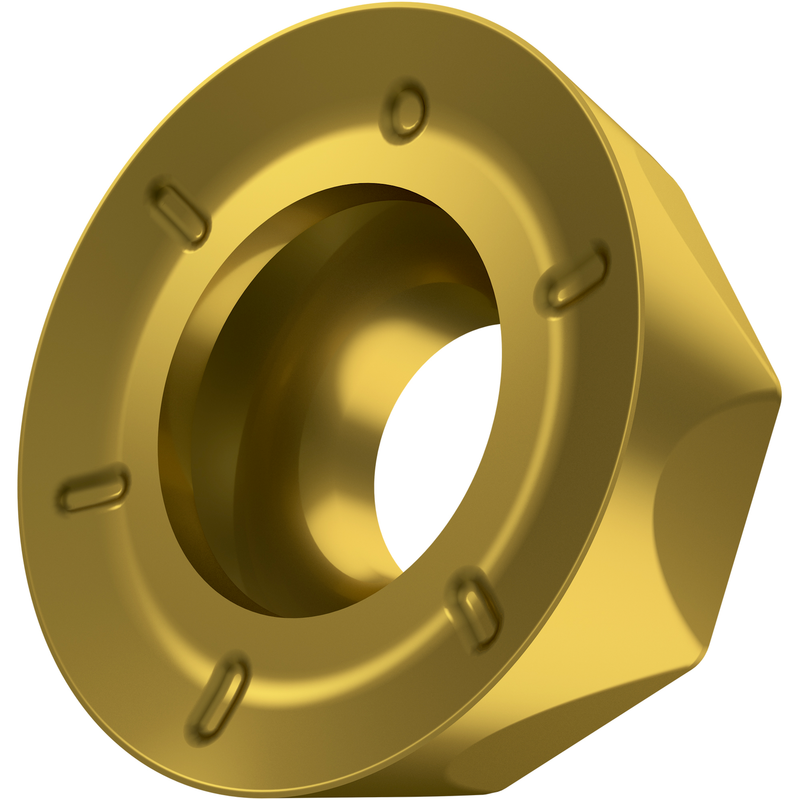

Plaquette de fraisage simple face RCMT 10T3 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 5 mm, avec rayon de coin ", une précision d'indexage selon la classe de tolérance ISO-M et une géométrie F avec arêtes de coupe et facette arrondies, carbure WC-Co revêtu PVD M6330 dans les plages de grades ISO M20-M35 et S10-S30 pour l'usinage de l'acier inoxydable et du superalliage avec des fraises à copier SRC10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOSN-F:M6330
GradeM6330
Chipbreaker (CBMD)F
Product Number7445881
Product FamilyCRMT 10
Insert Geometry
Insert DesignCRMR
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7445881
EAN3603603380059
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download

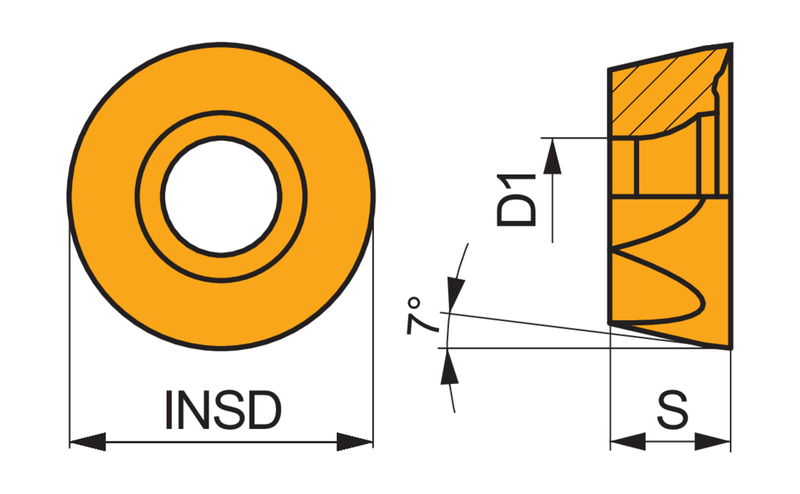

RCMT 10T3MOSN-F:M6330 — Line Drawing PDF Download
