RCMT 10T3MOSN-M:M8310
RCMT 10T3MOSN-M:M8310

RCMT 10T3MOSN-M:M8310

UGC DOR7445882
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.09 CAD - $15.09 CAD
$15.09 CAD
$15.09 CAD - $15.09 CAD
$15.09 CAD

Vendu en lots de : 10

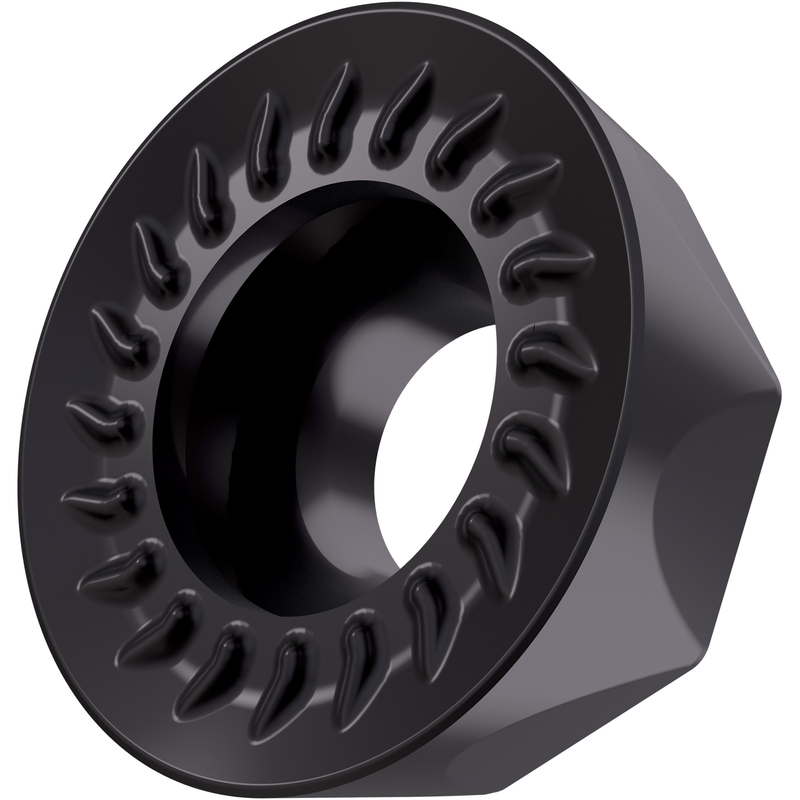

Plaquette de fraisage simple face RCMT 10T3 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 5 mm, avec un rayon de coin ", une précision d'indexage selon la classe de tolérance ISO M et une géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD M8310 dans les nuances ISO P01-P10 et K01-K10 pour l'usinage de l'acier et de la fonte avec les fraises à surfacer à copier SRC10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOSN-M:M8310
GradeM8310
Chipbreaker (CBMD)M
Product Number7445882
Product FamilyCRMT 10
Insert Geometry
Insert DesignCRPM
Insert Shape Code (SC)R - Rond
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7445882
EAN3603603380066
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download

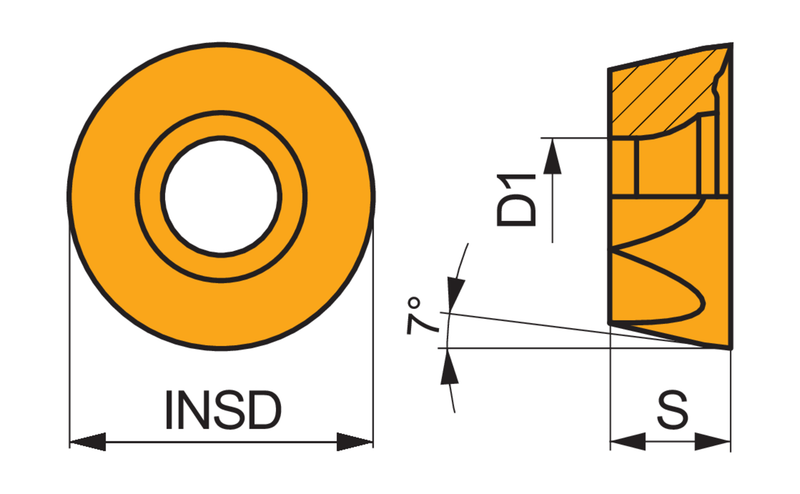

RCMT 10T3MOSN-M:M8310 — Line Drawing PDF Download
