RCMT 10T3MOSN-M:M8330
RCMT 10T3MOSN-M:M8330

RCMT 10T3MOSN-M:M8330

UGC DOR7445883
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.09 CAD - $15.09 CAD
$15.09 CAD
$15.09 CAD - $15.09 CAD
$15.09 CAD

Vendu en lots de : 10

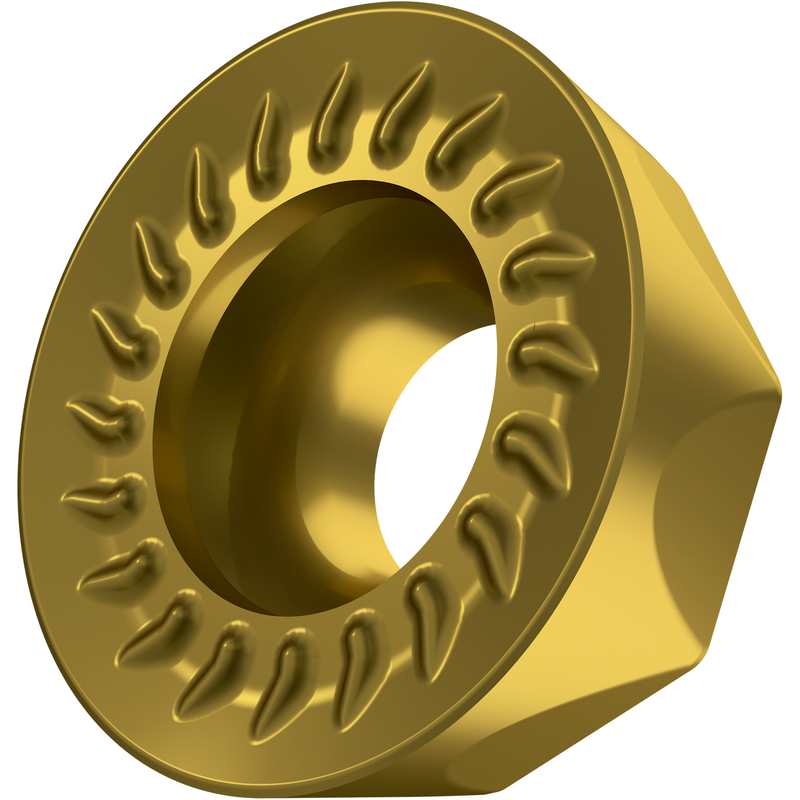

Plaquette de fraisage simple face RCMT 10T3 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 5 mm, avec un rayon de coin de ", une précision de positionnement selon la classe de tolérance ISO-M et une géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec des fraises à copier SRC10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOSN-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7445883
Product FamilyRCMT 10
Insert Geometry
Insert DesignCRMT
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7445883
EAN3603603380073
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download

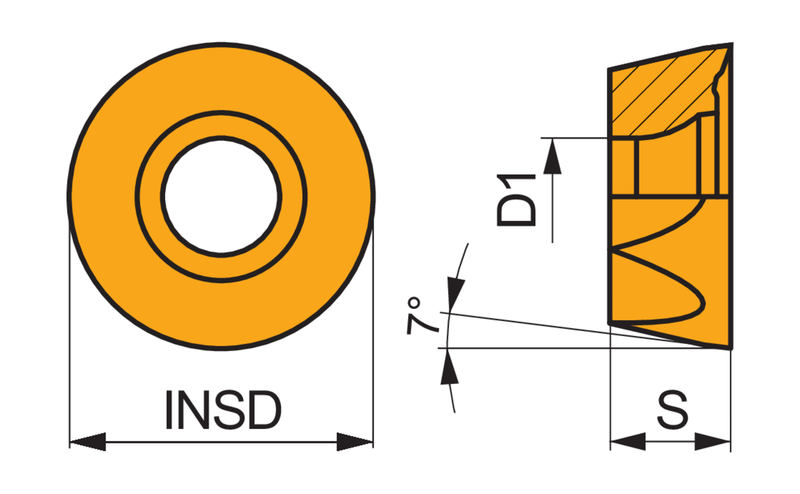

RCMT 10T3MOSN-M:M8330 — Line Drawing PDF Download
