ADKT 1505PDER-M:M8330
ADKT 1505PDER-M:M8330

ADKT 1505PDER-M:M8330

UGC DOR7447792
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.01 CAD - $17.01 CAD
$17.01 CAD
$17.01 CAD - $17.01 CAD
$17.01 CAD

Vendu en lots de : 10

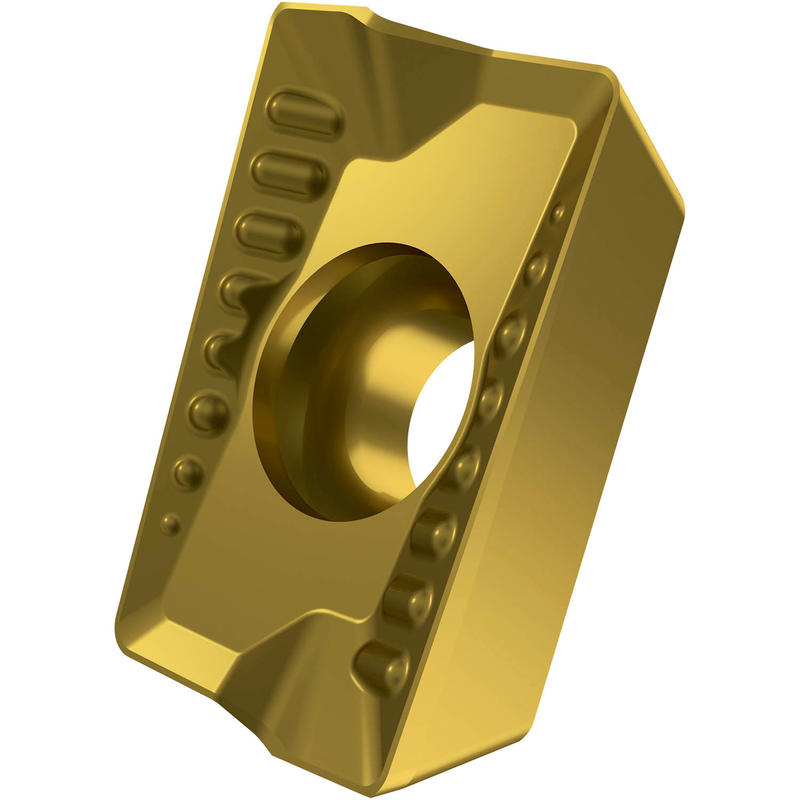

Plaquette de fraisage simple face ADKT 1505 avec brise-copeaux, parallélogramme à 85° pour une profondeur de coupe maximale de 12,99 mm, avec rayon de coin de 0,8 mm, une précision d'indexation selon la classe de tolérance ISO-K et une géométrie M avec des arêtes de coupe arrondies, en carbure WC-Co à grain fin revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ADKT 1505PDER-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7447792
Product FamilyADKT 15
Insert Geometry
Insert DesignDécret
Insert Shape Code (SC)A - parallélogramme angle compris 85°
Insert Thickness — in (S)0.22"
Insert Thickness — mm (S)5.6 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number7447792
EAN3603603385061
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download

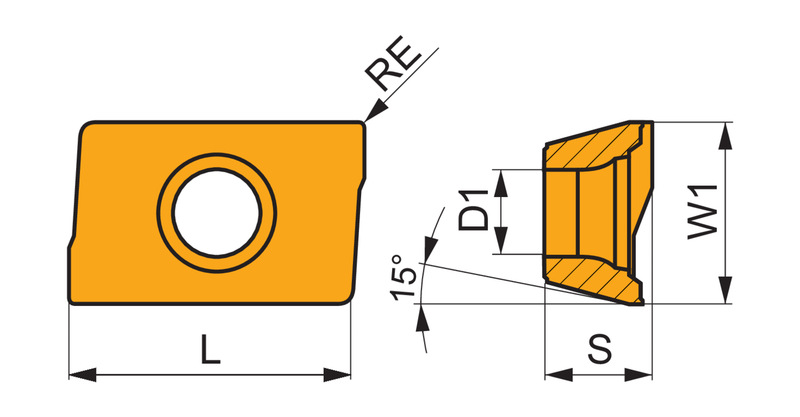

ADKT 1505PDER-M:M8330 — Line Drawing PDF Download
