APKT 1604PDR-HM:M8330
APKT 1604PDR-HM:M8330

APKT 1604PDR-HM:M8330

UGC DOR7447832
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.36 CAD - $17.36 CAD
$17.36 CAD
$17.36 CAD - $17.36 CAD
$17.36 CAD

Vendu en lots de : 10

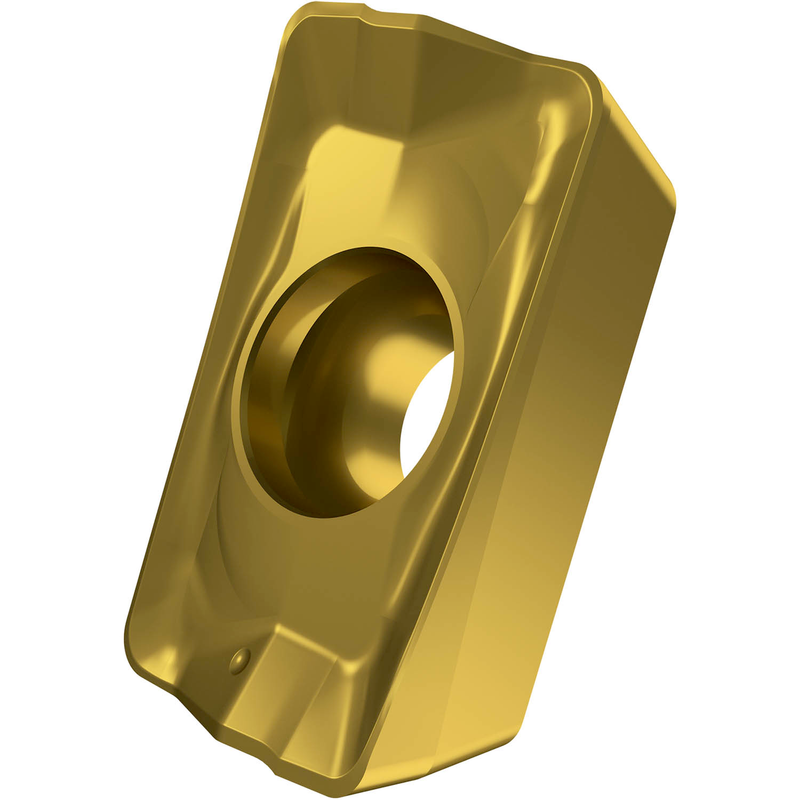

Plaquette de fraisage simple face APKT 1604 avec brise-copeaux, parallélogramme à 85° pour une profondeur de coupe maximale de 13 mm, avec un rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO K et une géométrie HM, en carbure WC-Co à grains fins revêtu PVD M8330, dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec des fraises à épaulement SAP16D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)APKT 1604PDR-HM:M8330
GradeM8330
Chipbreaker (CBMD)SM
Product Number7447832
Product FamilyAPKT 16

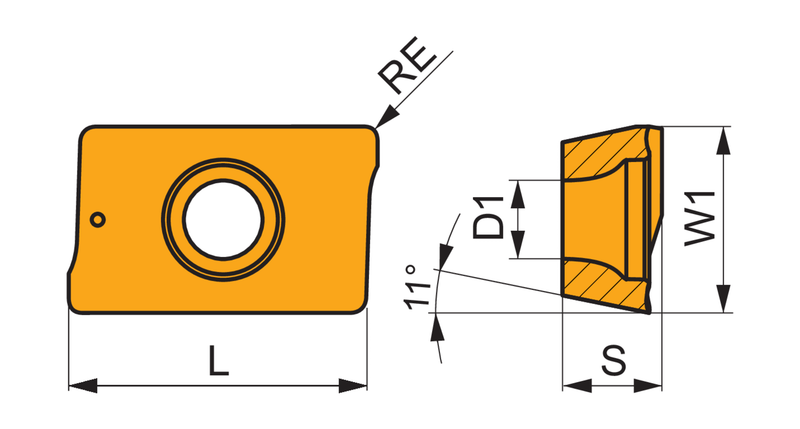

Insert Geometry
Insert DesignAPKT
Insert Shape Code (SC)A - parallélogramme 85° angle inclus
Insert Thickness — in (S)0.223"
Insert Thickness — mm (S)5.67 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number7447832
EAN3603603385467
File Type Download
APKT 1604PDR-HM:M8330 — Line Drawing PDF Download
