APMT 1604PDER-FM:M8330
APMT 1604PDER-FM:M8330

APMT 1604PDER-FM:M8330

UGC DOR7447834
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.97 CAD - $28.97 CAD
$28.97 CAD
$28.97 CAD - $28.97 CAD
$28.97 CAD

Vendu en lots de : 10

Plaquette de fraisage simple face APMT 1604 avec brise-copeaux, parallélogramme à 85° pour une profondeur de coupe maximale de 12,99 mm, avec rayon de coin ", une précision d'indexage selon la classe de tolérance ISO M et une géométrie FM avec arêtes de coupe arrondies, en carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO P20-P40 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)APMT 1604PDER-FM:M8330
GradeM8330
Chipbreaker (CBMD)FM
Product Number7447834
Product FamilyAPMT 16
Insert Geometry
Insert DesignAPMT
Insert Shape Code (SC)A - parallélogramme 85° angle inclus
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.512"
Depth of Cut Max — mm (APMX)13.0 mm
Tool Information
Reference Numbers
EDP Number7447834
EAN3603603385481
File Type Download

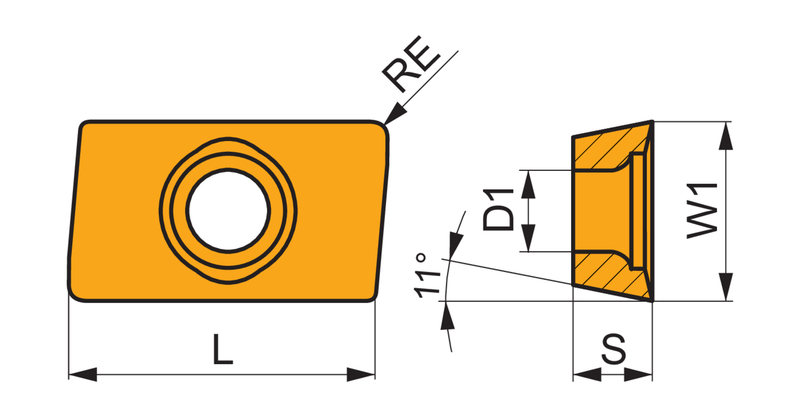

APMT 1604PDER-FM:M8330 — Line Drawing PDF Download
