CCMX 08T308S-TS1:M8330
CCMX 08T308S-TS1:M8330

CCMX 08T308S-TS1:M8330

UGC DOR7447872
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.60 CAD - $24.60 CAD
$24.60 CAD
$24.60 CAD - $24.60 CAD
$24.60 CAD

Vendu en lots de : 10

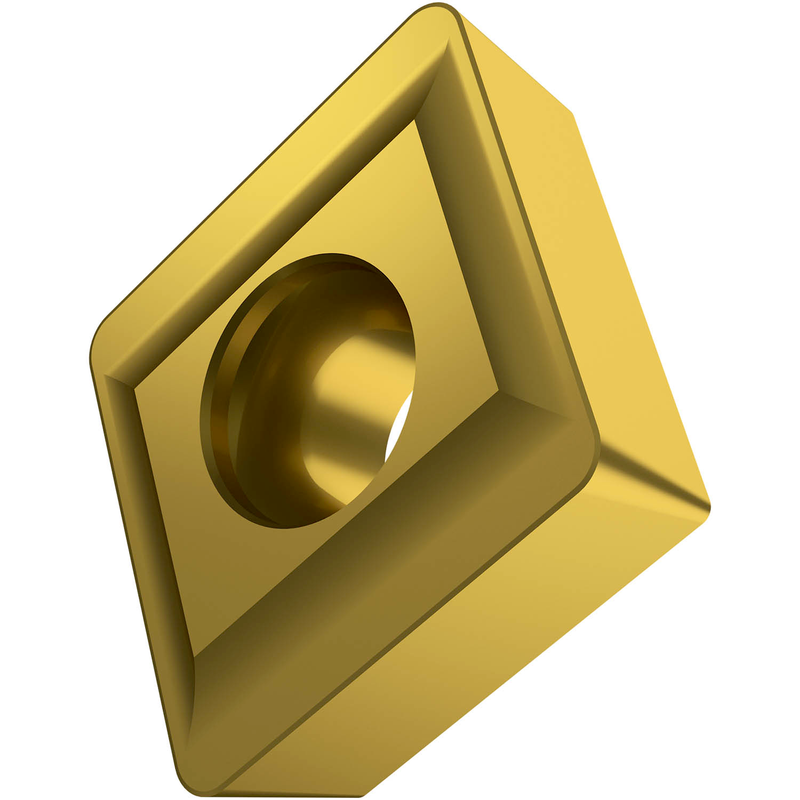

Plaquette de fraisage simple face CCMX 08T3, rhomboïde 80° pour fraise à rainurer en T de 1,2598", avec rayon de coin de 0,0315", précision de positionnement selon la classe de tolérance ISO-M et géométrie TS1 avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec fraise à rainurer en T F-SCC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMX 08T308S-TS1:M8330
GradeM8330
Chipbreaker (CBMD)ST1
Product Number7447872
Product FamilyCCMX

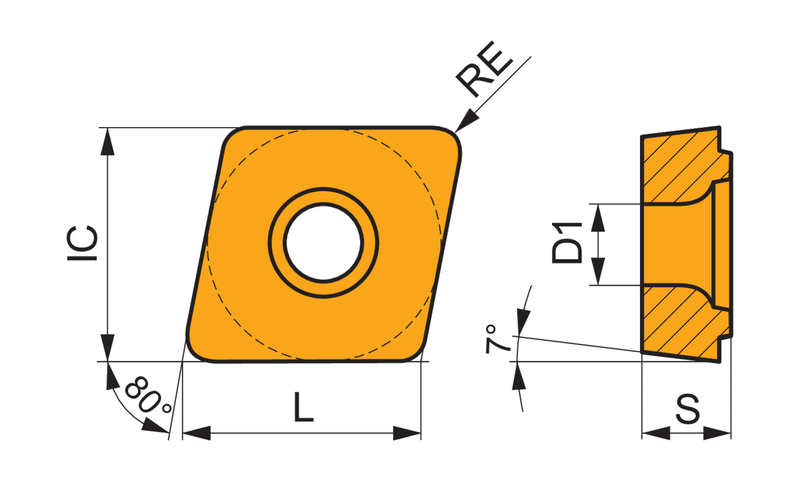

Insert Geometry
Insert DesignCCMX
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Inscribed Circle Dia. — in (IC)0.316"
Inscribed Circle Dia. — mm (IC)8.03 mm
Insert Thickness — in (S)0.173"
Insert Thickness — mm (S)4.4 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7447872
EAN3603603385511
File Type Download
CCMX 08T308S-TS1:M8330 — Line Drawing PDF Download
