CCMX 09T308S-TS1:M8330
CCMX 09T308S-TS1:M8330

CCMX 09T308S-TS1:M8330

UGC DOR7447873
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.60 CAD - $24.60 CAD
$24.60 CAD
$24.60 CAD - $24.60 CAD
$24.60 CAD

Vendu en lots de : 10

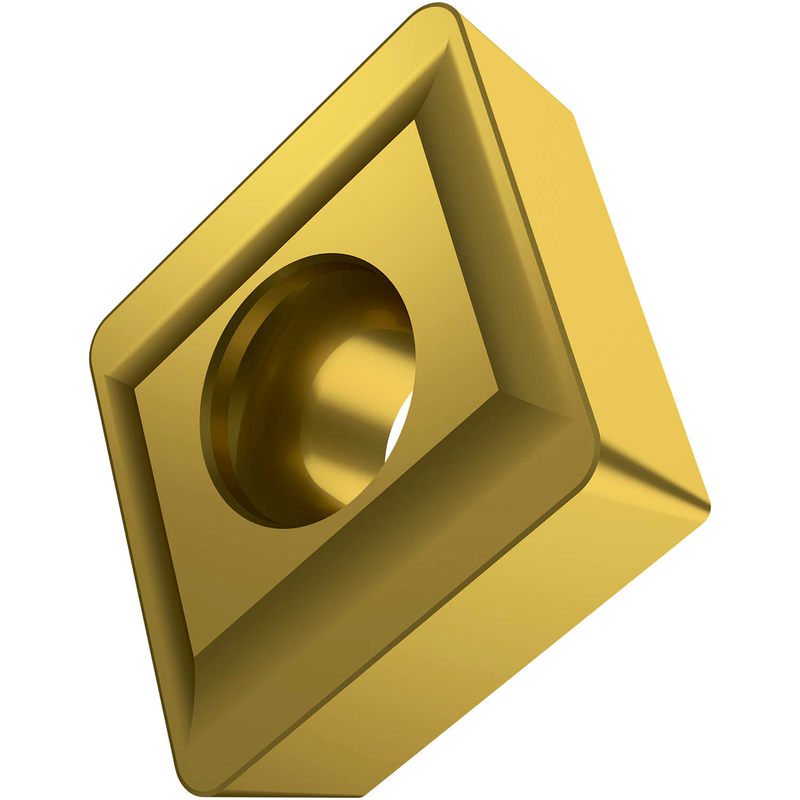

Plaquette simple face CCMX 09T3, rhomboïde 80° pour fraise à rainurer en T de 1.5748", avec un rayon de coin de .0315", une précision de positionnement selon la classe de tolérance ISO-M et une géométrie TS1 avec arêtes de coupe et facette arrondies, carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec fraise à rainurer en T F-SCC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMX 09T308S-TS1:M8330
GradeM8330
Chipbreaker (CBMD)ST1
Product Number7447873
Product FamilyCCMX

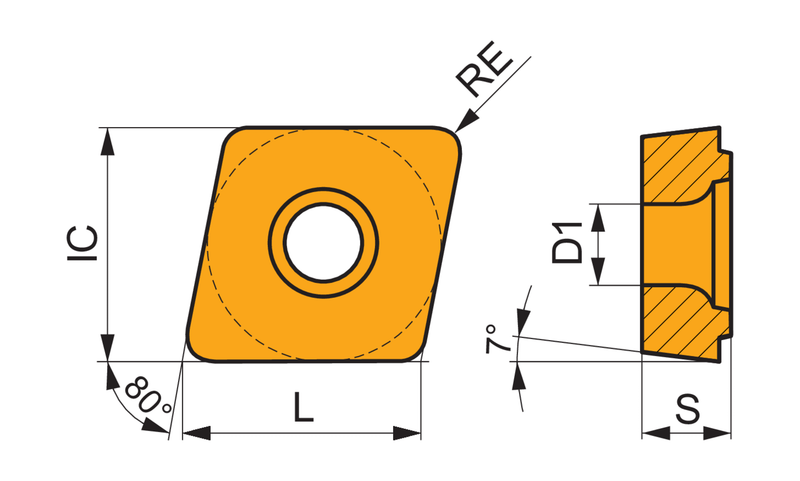

Insert Geometry
Insert DesignCCMX
Insert Shape Code (SC)C - losange, angle inclus de 80°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number7447873
EAN3603603385528
File Type Download
CCMX 09T308S-TS1:M8330 — Line Drawing PDF Download
