CCMX 060304S-TS1:M8330
CCMX 060304S-TS1:M8330

CCMX 060304S-TS1:M8330

UGC DOR7447874
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.73 CAD - $21.73 CAD
$21.73 CAD
$21.73 CAD - $21.73 CAD
$21.73 CAD

Vendu en lots de : 10

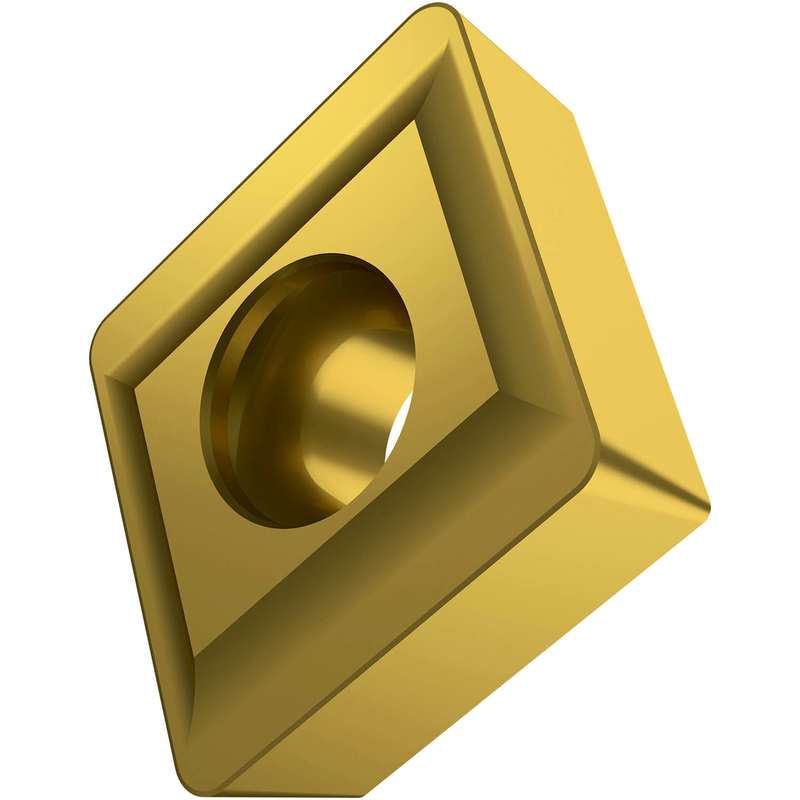

Plaquette de fraisage simple face CCMX 0603, rhomboïde 80° pour fraise à rainurer en T de 25 mm (.9843"), avec rayon de coin de 0,4 mm (.0157"), précision de positionnement selon la classe de tolérance ISO-M et géométrie TS1 avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec la fraise à rainurer en T F-SCC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CCMX 060304S-TS1:M8330
GradeM8330
Chipbreaker (CBMD)ST1
Product Number7447874
Product FamilyCCMX

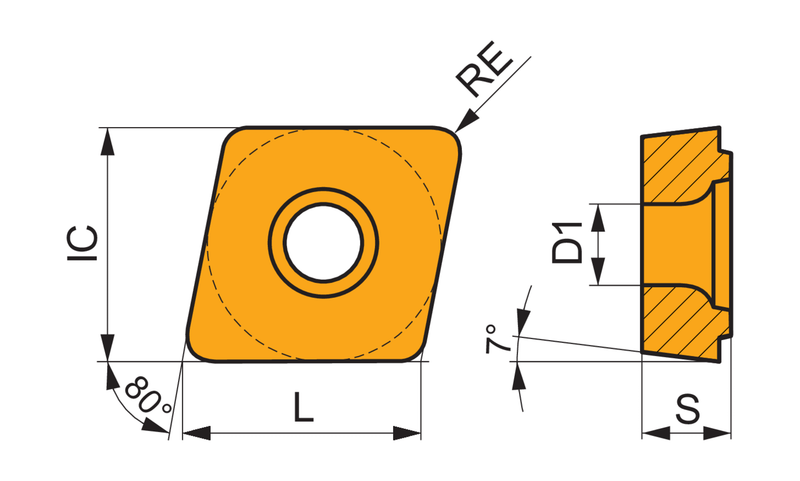

Insert Geometry
Insert DesignCCMX
Insert Shape Code (SC)C - angle de 80° inclus, rhomboïde
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.138"
Insert Thickness — mm (S)3.5 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number7447874
EAN3603603385535
File Type Download
CCMX 060304S-TS1:M8330 — Line Drawing PDF Download
