CNM 563:M8330
CNM 563:M8330

CNM 563:M8330

UGC DOR7447876
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.80 CAD - $43.80 CAD
$43.80 CAD
$43.80 CAD - $43.80 CAD
$43.80 CAD

Vendu en lots de : 10

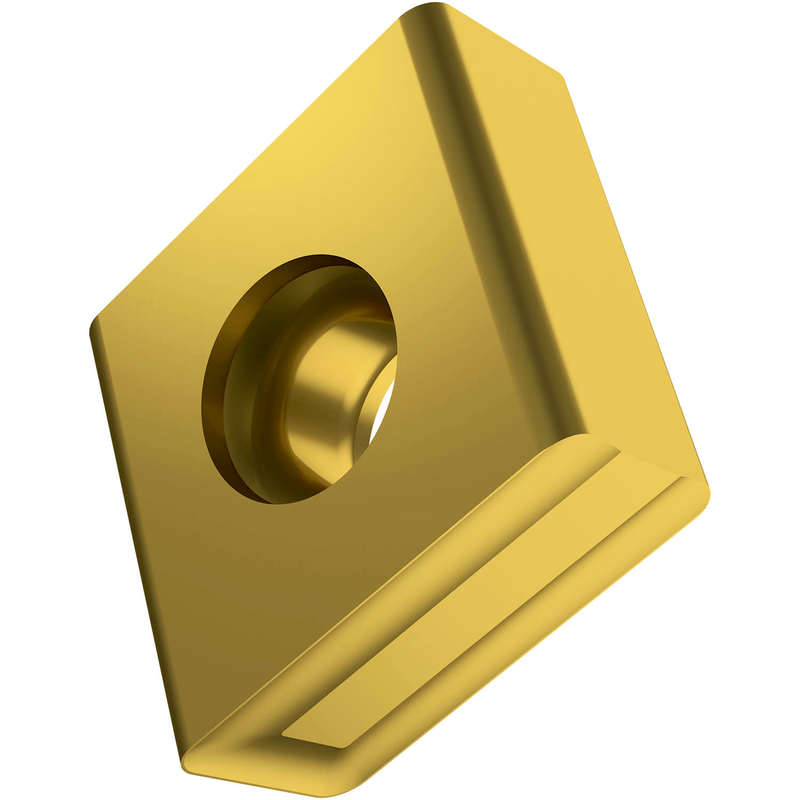

Plaquette double face CNM 563, rhomboïde à 80° pour une profondeur de coupe maximale de 0,5512", avec un rayon de coin de 0,0472", une précision d'indexage selon la classe de tolérance ISO M, carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNM 563:M8330
GradeM8330
Chipbreaker (CBMD)Avec brise-copeaux – aucune désignation
Product Number7447876
Product FamilyNCM

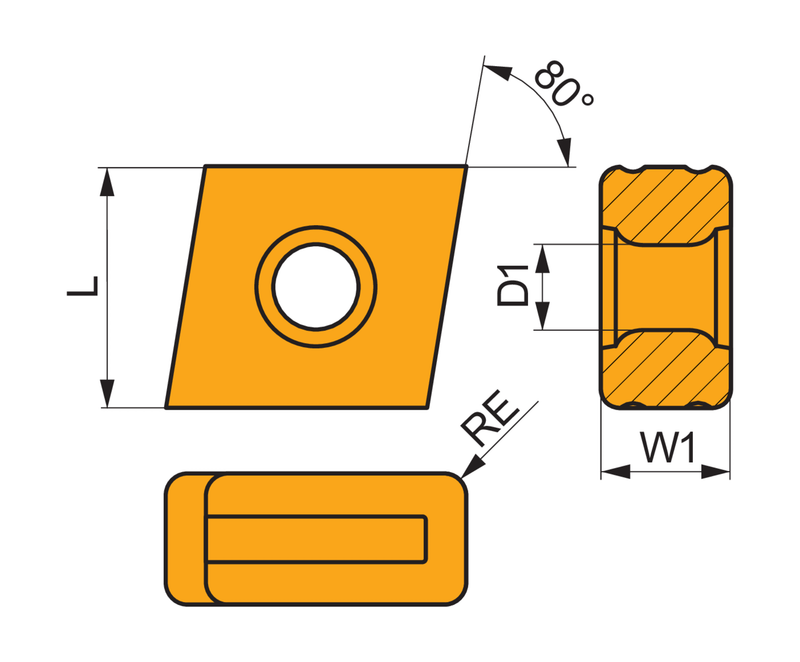

Insert Geometry
Insert DesignCNM
Insert Shape Code (SC)C - angle inclus rhomboïde de 80°
Insert Thickness — in (S)0.315"
Insert Thickness — mm (S)8.0 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.551"
Depth of Cut Max — mm (APMX)14.0 mm
Tool Information
Reference Numbers
EDP Number7447876
EAN3603603385559
File Type Download
CNM 563:M8330 — Line Drawing PDF Download
