ODEW 0605ZZN:M8330
ODEW 0605ZZN:M8330

ODEW 0605ZZN:M8330

UGC DOR7447915
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.57 CAD - $26.57 CAD
$26.57 CAD
$26.57 CAD - $26.57 CAD
$26.57 CAD

Vendu en lots de : 10

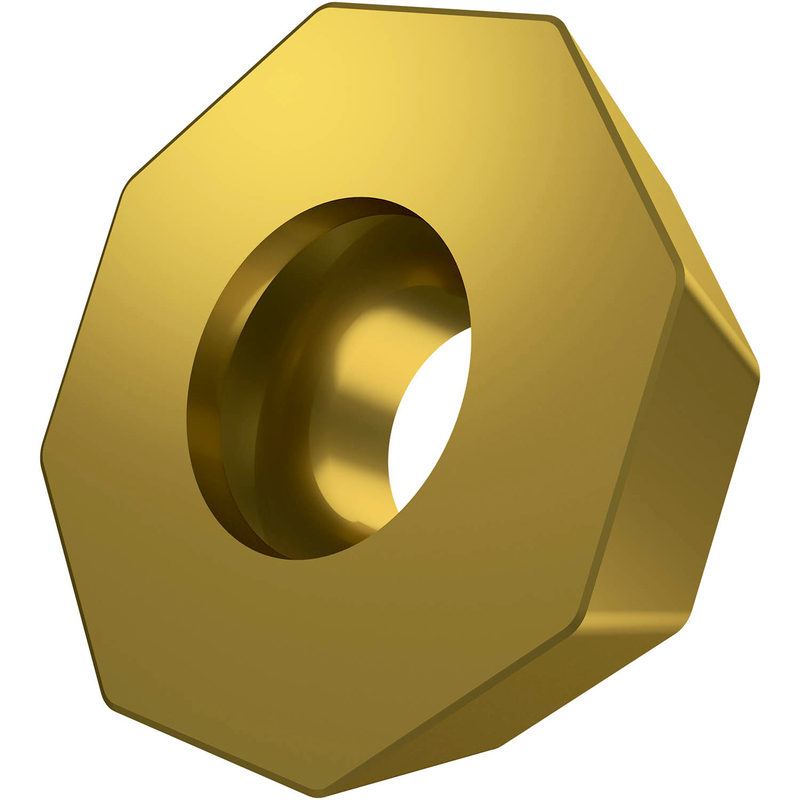

Plaquette de fraisage simple face ODEW 0605 avec une surface de coupe plane, octogonale pour une profondeur de coupe maximale de 3,1 mm (0,122"), avec un rayon de coin de 0,8 mm (1/32"), une précision d'indexation selon la classe de tolérance ISO-E, carbure WC-Co à grain fin revêtu PVD M8330 dans la gamme de nuances ISO K20-K40 pour l'usinage de la fonte avec des fraises à surfacer SOD06D

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ODEW 0605ZZN:M8330
GradeM8330
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7447915
Product FamilyODEW 06

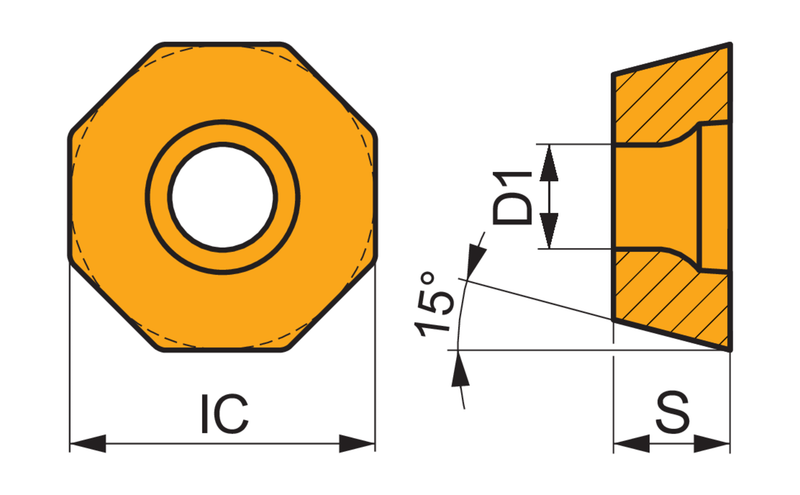

Insert Geometry
Insert DesignDOEW
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Depth of Cut Max — in (APMX)0.122"
Depth of Cut Max — mm (APMX)3.1 mm
Tool Information
Reference Numbers
EDP Number7447915
EAN3603603385849
File Type Download
ODEW 0605ZZN:M8330 — Line Drawing PDF Download
