ODKT 0505ADSR-FM:M8330
ODKT 0505ADSR-FM:M8330

ODKT 0505ADSR-FM:M8330

UGC DOR7447916
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.01 CAD - $23.01 CAD
$23.01 CAD
$23.01 CAD - $23.01 CAD
$23.01 CAD

Vendu en lots de : 10

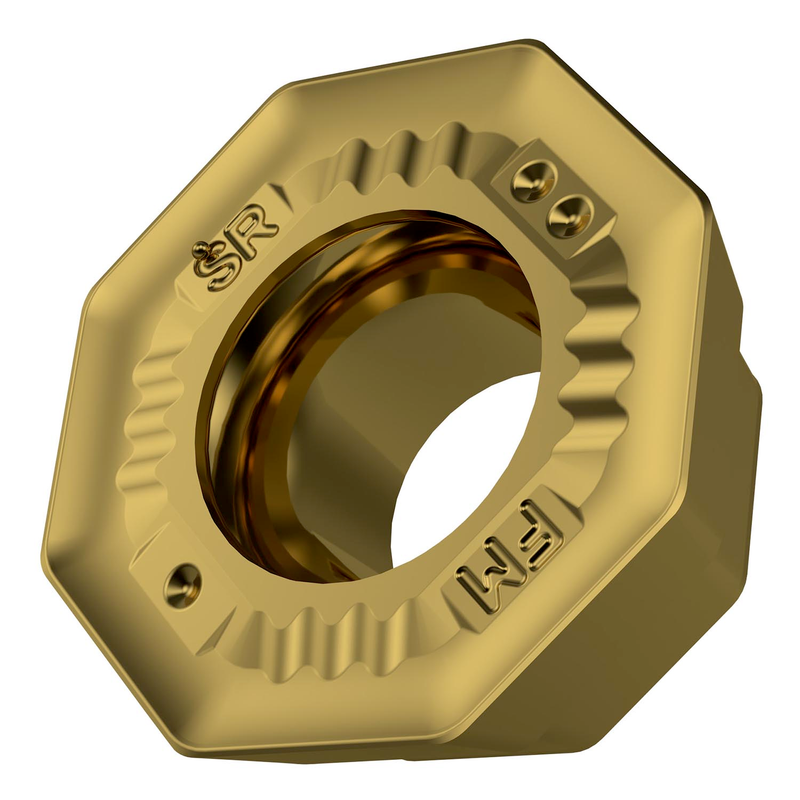

Plaquette de fraisage simple face ODKT 0505 avec brise-copeaux, octogonale pour une profondeur de coupe maximale de 2,7 mm, avec rayon de coin de 0,8 mm, précision de positionnement selon la classe de tolérance ISO-K et géométrie FM avec arêtes de coupe arrondies et facette, en carbure WC-Co à grains fins revêtu PVD M8330 dans la plage de nuances ISO P20-P40 pour l'usinage de l'acier avec les fraises à copier SOD05

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ODKT 0505ADSR-FM:M8330
GradeM8330
Chipbreaker (CBMD)FM
Product Number7447916
Product FamilyODKT 05IM

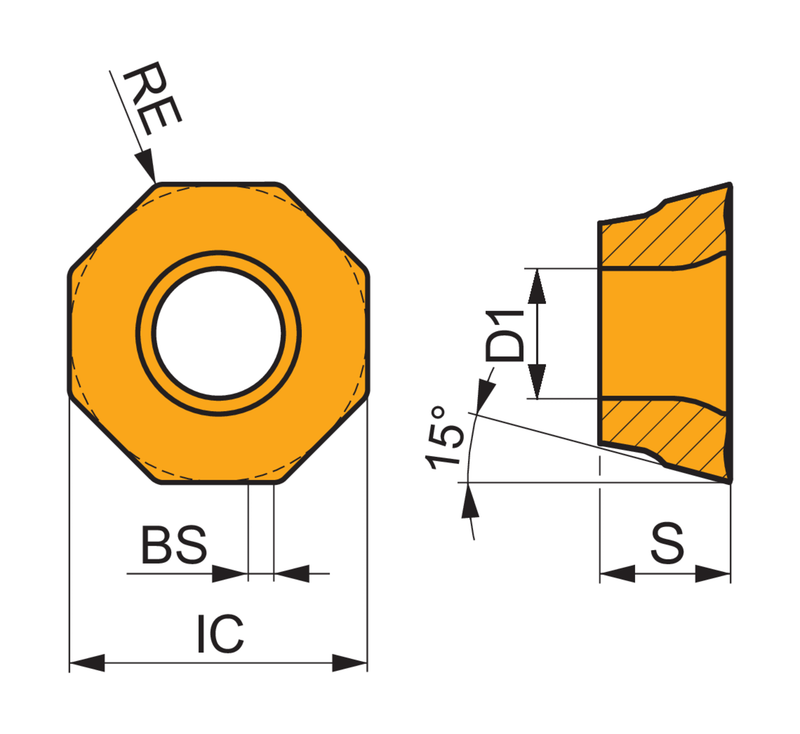

Insert Geometry
Insert DesignODKT
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.106"
Depth of Cut Max — mm (APMX)2.7 mm
Tool Information
Reference Numbers
EDP Number7447916
EAN3603603385856
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
ODKT 0505ADSR-FM:M8330 — Line Drawing PDF Download
