OFKR 0704SN-M:M8330
OFKR 0704SN-M:M8330

OFKR 0704SN-M:M8330

UGC DOR7447924
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.64 CAD - $21.64 CAD
$21.64 CAD
$21.64 CAD - $21.64 CAD
$21.64 CAD

Vendu en lots de : 10

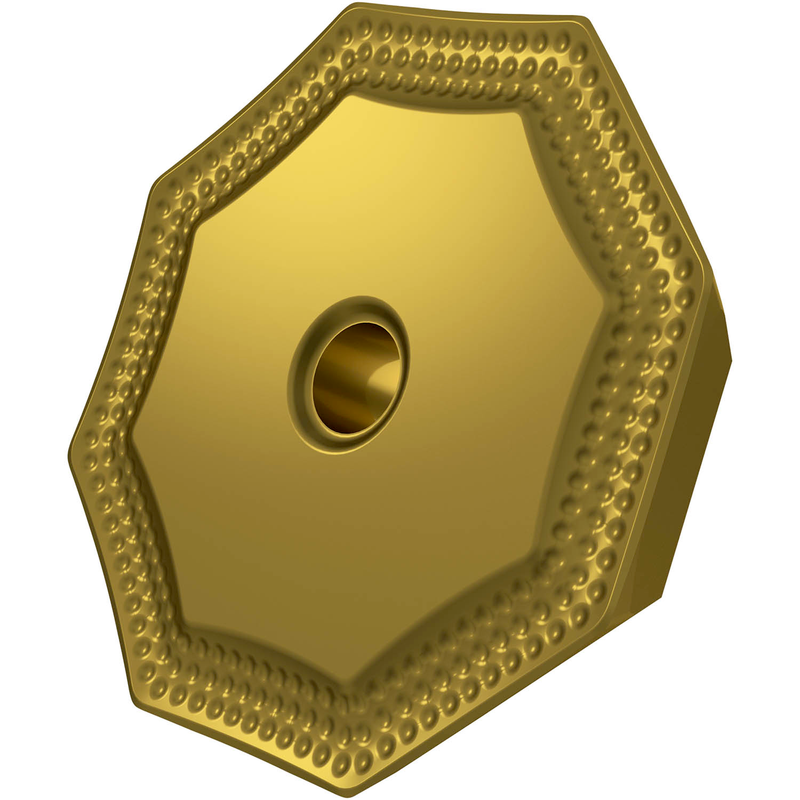

Plaquette de fraisage simple face OFKR 0704 avec brise-copeaux, octogonale pour une profondeur de coupe maximale de 12 mm, avec rayon de coin ", une précision d'indexage selon la classe de tolérance ISO-K et la géométrie M, carbure WC-Co à grain fin revêtu PVD M8330 dans la plage de nuances ISO P20-P40 pour l'usinage de l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)OFKR 0704SN-M:M8330
GradeM8330
Chipbreaker (CBMD)M
Product Number7447924
Product FamilyOFKR 07
Insert Geometry
Insert DesignOFKR
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.703"
Inscribed Circle Dia. — mm (IC)17.84 mm
Insert Thickness — in (S)0.18"
Insert Thickness — mm (S)4.56 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number7447924
EAN3603603385931
File Type Download

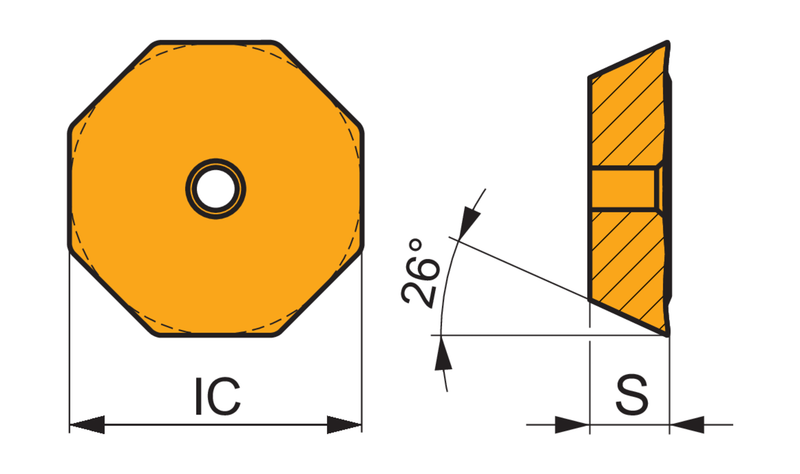

OFKR 0704SN-M:M8330 — Line Drawing PDF Download
